The issue could be related to the specific 5G services enabled on the cards, and their configuration. It's possible that these services are not correctly configured, which may cause problems on 5G enabled/compliant phones. Older phones/devices that are not 5G compliant will not read the 5G settings at all, thus the 5G settings won't affect any behavior.

The UST (USIM Service Table) in the USIM application may also need to be checked and configured correctly. We recommend disabling all services in UST above 121, and then enabling the services 122 and 123 if you want basic 5G security settings. Any other services above 123 would require proper configurations in the files under USIM / 5GS.

Please test this and if you have any further questions or require further assistance, please let us know.

Disable all services in UST above 121

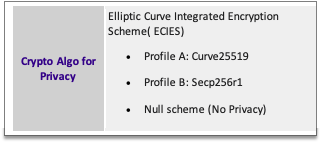

If SIM cards work and get detected and you want some basic 5G security settings, enable the services 122 and 123
Any other services above 123 needs proper configurations in the files under USIM / 5GS

Steps to Troubleshoot and Resolve

1. (Apple only) Review Apple's Guidelines:

- Please refer to Apple's guidance on private networks for iOS 17 (IOS 17 necessary for Private 5G) and later: Apple Device Support for Private 5G and LTE Networks (https://support.apple.com/en-gb/guide/deployment/depac6747317/web). This document outlines the requirements and configurations for connecting to private 5G and LTE networks using iPhone and iPad devices.

From Apple guidance

a. Configuration for Private Networks:

- Ensure your SIMs use MCC 999 with designated MNCs (e.g., 99985, 99999) for private network use. The PLMN settings must reflect these configurations.

- Confirm that the device model is compatible with 5G Standalone and private network configurations. Supported devices include iPhone 12 and later, iPad Pro models, and others listed in the Apple documentation.

b. MDM Configuration:

- If you are using MDM, ensure the `EnableNRStandalone` key is included in the Private Mobile Network payload to enable 5G SA. Use the `CellularDataPreferred` key to prioritize mobile data over Wi-Fi within the private network geofence.

c. Geofencing and Network Switching:

- Configure geofences to manage automatic switching between private and public networks as needed.

2. Check SIM Provisioning:

- Verify that the SIM cards have been provisioned correctly. For 5G support, UST services 123 and 124 should be enabled. Also, ensure that the Home PLMN (HPLMN) has NG-RAN selected as the Access Technology.

3. Access Class Barring (ACC)

Access class barring is file ACC [6F78] under USIM.

****************************** From ETSI TS 131 102

EF_ACC (Access Control Class)

This EF contains the assigned access control class(es). The access control class is a parameter to control the access attempts. 15 classes are split into 10 classes randomly allocated to normal subscribers and 5 classes allocated to specific high priority users. For more information see TS 22.011 [2].

Identifier: '6F78'		Structure: transparent			Mandatory
SFI: '06'
File size: 2 bytes			Update activity: low
Access Conditions: READ PIN UPDATE ADM DEACTIVATE ADM ACTIVATE ADM
Bytes	Description			M/O	Length
1 to 2	Access control classes			M	2 bytes

- Access control classes Coding:

each ACC is coded on one bit. An ACC is "allocated" if the corresponding bit is set to 1 and "not allocated" if this bit is set to 0. Bit b3 of byte 1 is set to 0.

Byte 1:

b8 b7 b6 b5 b4 b3 b2 b1

15 14 13 12 11 10 09 08 Number of the ACC (except for bit b3)

Byte 2:

b8 b7 b6 b5 b4 b3 b2 b1

07 06 05 04 03 02 01 00 Number of the ACC

So this is in binary format, and you set the ACC’s with 0’s and 1’s for non-allocated or allocated classes.

So for example allocating ACC nr 1 and 4 = 0 0 0 1 0 0 1 0 and this equals in HEX à 12

So you enter 00 12 in the file ACC and add it to the script or write it directly to the card.

ACC should never be 00 00 as this would block all channels and connectivity.

4. Questions about setting AMF on the SIM cards

AMF and this is not set on the cards (00 00) and can't be changed or set as there is no file for that.

AMF not used in UMTS-AKA (=00 00) as algo mainly used is MILENAGE

AMF = 80 00 for EPS AKA as bit set to indicate to mobile EPS rather than UMTS AKA

So tell them to set AMF to 00 00 on Network and if there is any problems try 80 00 or 80 01.

That's for all our SIM card types except when TUAK is activated on SMAOT500B234FF cards. See TUAK.

5. HPLMNwAct

What you need to do is to configure HPLMNwAct (EF 6F62), the Home PLMN with Access Technology.

Service 43 in UST must be enabled, but unless you change that during your provisioning, it's enabled by default on our cards.

The correct way to put data in HPLMNwAct is to start with the highest priority access.

So for example, if you have PLMN 234 25 and want NG-RAN prioritised and E-Utran as second option etc, you enter the same PLMN on after another but with different access technologies:

Example:

32 F4 52 08 00 32 F4 52 40 00

Highest priority access will be NG-RAN followed by E-UTRAN.

08 00 is 5G (NG-RAN)

40 00 is LTE (E-UTRAN)

80 00 is 3G (UTRAN)

Install / load applet

Hello Insert RecipientFirstName,

You can use GPShell and the SCP02 mac and enc key for these specific test cards are:

506572736F6E616C69736174696F6E4B

456E6372797074696F6E536563726574

Instead of using the GPShell command line feature it’s easier to create scripts in a simple text editor and run the script in command line simply like:

> gpshell script.txt

Info when developing applets:

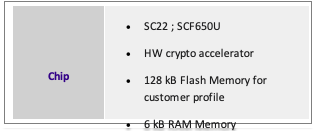

Versions on the card:

JC version JCVM/JCRE/JCAPI version 3.0.4

Global Platform Version 2.3

ETSI UICC toolkit API version v1.12

3GPP SIM Toolkit API Version v2.6

3GPP USIM Toolkit API Version v1.9

3GPP Rel.15

ETSI Rel.15R15

these libraries are probably needed for SIM toolkit applet:

import uicc.toolkit.*;

import uicc.access.*;

Please find a sample below where GPShell was used to install applet called usat.cap on the card SMAOT500A234FF.

Download link to usat.cap: https://www.dropbox.com/s/9hk2w9dlysfbgzp/usat.cap?dl=0

GPShell script:

mode_211

establish_context

enable_trace

card_connect

select -AID A000000151000000

open_sc -security 3 -keyver 0 -mac_key 506572736F6E616C69736174696F6E4B -enc_key 456E6372797074696F6E536563726574 -kek_key 4B6579456E6372797074696F6E4B6579

install_for_load -pkgAID a123456789000001 -sdAID A000000151000000

load -file usat.cap

send_apdu -sc 0 -APDU 80E60C003B08A12345678900000108A12345678900000208A12345678900000201001CEA18800A0F001000010201120000810400010000820400010000C90000

card_disconnect

release_context

instead of the GPShell install-for-install command, the APDU below is used in the script above:

* INSTALL FOR INSTALL AND MAKE SELECTABLE

80 E6 0C 00 3B \ ;

08 A123456789000001 \ ; Load File AID

08 A123456789000002 \ ; Executable Module AID

08 A123456789000002 \ ; Application AID

01 00 \; Privileges

1C \ ; Install Parameters Field Length

EA 18 \ ; TS 102 226 specific template

80 0A \ ; UICC Toolkit Application specific parameters

0F \ ; Priority level of the Toolkit application instance

00 \ ; Maximum number of timers allowed for this application instance

10 \ ; Maximum text length for a menu entry

00 \ ; Maximum number of menu entries allowed for this application instance

01 \ ; Maximum number of channels for this application instance

02 \ ; Length of Minimum Security Level field

0112 \ ; Minimum Security Level (MSL)

00 \ ; Length of TAR Value(s) field

00 \ ; Maximum number of services for this application instance

81 04 \ ; UICC Access Application specific parameters

00010000 \ ;

82 04 \ ; UICC Administrative Access Application specific parameters

00010000 \ ;

C9 00 \ ; Applet Specific parameters

\ ;

00 \ ; Length of Install Token

6. PKCS15 applet hash

Hello ~%InsertRecipientFirstName,

To my understanding, if you write in a SIM / PKCS # 15 a SHA1 checksum of the public cert you signed an Android app with, Android approves that the app in question gets access to normally blocked system APIs. You can then, for example, make operator-specific settings in the phone that otherwise normally have to be made by the phone manufacturer, which takes time to get them done. You still can't make changes directly to the SIM content.

Changes you can make:

https://developer.android.com/reference/android/telephony/CarrierConfigManager

********************************
PKCS15

********************************

Regarding PKCS15, I've enclosed a script that rectifies some wrongs and adds some files (only run it one time on card to update it):

Fixes:

4300 extended to 74 bytes

4310 extended to 36 bytes

EF's 4311,4312,4313 created with size 36 bytes.

ODF is pointing to DODF 4401

If an otherwise "regular" app in a smartphone has a checksum / is signed with a certificate, and that certificate's sha-1 / sha-256 20/32 byte long "fingerprint" is stored on the phone's SIM card in either ARA- or the ARF / PKCS # 15 applications, then this mobile app will have access to normally unavailable system APIs.

Your files signature fingerprint / hash should be stored in file 4310.

This is described in detail here: https://source.android.com/devices/tech/config/uicc

Since there is a standard for this, it works basically the same for both Android and for iOS. The whole thing is described in some detail in the link below, including down to EF level (see for example appendix C.2-C.3 from page 93).

https://globalplatform.org/wp-content/uploads/2014/10/GPD_SE_Access_Control_v1.1.pdf (The whole site https://globalplatform.org/ offers interesting info if you have not already looked there.)

In SIM Editor, the default size of 4310 is 2 bytes. After running the script enclosed, it will be 36 bytes. So you have to click the checkbox "Read content from card when selecting file" before selecting the file, and this will make SIM Editor read the file structure on the card and the correct size will be shown.

For applet install

********************************

GPSHELL sample applet install

********************************

GPShell uses MAC and ENC key (same on all cards)

506572736F6E616C69736174696F6E4B

456E6372797074696F6E536563726574

Please find a sample below where GPShell was used to install applet called usat.cap on the card SMAOT500A234FF (should work for the SMAOt100A as well). Find a download link to the usat.cap sample applet here: https://www.dropbox.com/s/9hk2w9dlysfbgzp/usat.cap?dl0

GPShell script:

mode_211

establish_context

enable_trace

card_connect

select -AID A000000151000000

open_sc -security 3 -keyver 0 -mac_key 506572736F6E616C69736174696F6E4B -enc_key 456E6372797074696F6E536563726574 -kek_key 4B6579456E6372797074696F6E4B6579

install_for_load -pkgAID a123456789000001 -sdAID A000000151000000

load -file usat.cap

send_apdu -sc 0 -APDU 80E60C003B08A12345678900000108A12345678900000208A12345678900000201001CEA18800A0F001000010201120000810400010000820400010000C90000

card_disconnect

release_context

instead of the GPShell install-for-install command, the APDU below was used in the above sample:

* INSTALL FOR INSTALL AND MAKE SELECTABLE

80 E6 0C 00 3B \ ;

08 A123456789000001 \ ; Load File AID

08 A123456789000002 \ ; Executable Module AID

08 A123456789000002 \ ; Application AID

01 00 \; Privileges

1C \ ; Install Parameters Field Length

EA 18 \ ; TS 102 226 specific template

80 0A \ ; UICC Toolkit Application specific parameters

0F \ ; Priority level of the Toolkit application instance

00 \ ; Maximum number of timers allowed for this application instance

10 \ ; Maximum text length for a menu entry

00 \ ; Maximum number of menu entries allowed for this application instance

01 \ ; Maximum number of channels for this application instance

02 \ ; Length of Minimum Security Level field

0112 \ ; Minimum Security Level (MSL)

00 \ ; Length of TAR Value(s) field

00 \ ; Maximum number of services for this application instance

81 04 \ ; UICC Access Application specific parameters

00010000 \ ;

82 04 \ ; UICC Administrative Access Application specific parameters

00010000 \ ;

C9 00 \ ; Applet Specific parameters

\ ;

00 \ ; Length of Install Token

Question: I have an app that is attempting to get carrier permission; however, carrier privilege is not being granted.

The app is signed with both sha1 and sha256 as indicted from the developer:

2. Is it possible for you to reburn the SIM with either of the keys shown in below snapshot as:

SHA1: 728614F9D9FFAF8FC9717CE8C3809269989F264B

SHA256: 7150CE4726D0CFBFC6B0848F1E833CFDD533BE9F16D588C098C029D6C9428A16

Smartjac Answer:

Change EF 4300 with our fix script so it links to EF 4310 as showed below.

3010A0080406FFFFFFFFFFFF300404024310

Then script the EF 4310 with the Hash value of the phone application

00A4040C 0C A000000063504B43532D3135

00A4000C 02 3F00 /select MF

00A4000C 02 7FFF /select selected AID DF

00A4090C 02 4310 / select 4310

00D60000 24 30160414728614F9D9FFAF8FC9717CE8C3809269989F264BFFFFFFFFFFFFFFFFFFFFFFFF

7. PC/SC reader problem / communication error

Issue: "(The Smart Card Resource Manager is not running)"

This is not an issue with SIM Editor, but with the communication with Windows and the smart card reader. The error is actually a Windows error / warning.

It seems you're experiencing an issue with the Smart Card Resource Manager not running, which is affecting the use of the SIM Editor software. This issue is typically related to communication problems between Windows and the smart card reader, rather than a problem with the SIM Editor itself. Here are steps with SIM Editor you can follow to try and resolve the issue:

1. Check Communication: Use the "Check ATR" button within SIM Editor to test the communication between the software and the smart card reader. If this does not work, it usually indicates a communication issue with the card reader.

2. Remote Desktop Protocol (RDP): If you're using Windows RDP, it might cause issues as the software could attempt to use the smart card reader from the local PC instead of the remote one where SIM Editor is installed. Try using alternative remote tools like TeamViewer or Webex.

The above is the most common issue among our customers, as many are trying to share the SIM Editor from remote locations.

3. USB Port: Try changing the USB port of the smart card reader to a different one.

4. Restart SIM Editor as Administrator: Restarting the SIM Editor software with administrator privileges might help resolve the issue.

5. Antivirus Software: Ensure that your antivirus software is not blocking any SIM Editor processes.

6. Multiple Card Readers: If your PC has multiple card readers installed, this could cause a conflict. The software tries to read the first available card from the first available reader and then tries the next one.

These steps are derived from our knowledge source, indicating that these measures have been effective for other users experiencing similar issues.

The error message indicating the Smart Card Resource Manager is not running can be a result of various underlying issues ranging from software conflicts, outdated drivers, or incorrect service configurations. Here's a detailed approach to troubleshoot and resolve this issue:

Check Smart Card Service Status:

Access the Services management console (services.msc) through the Run dialog (Win + R).
Locate the "Smart Card" service in the list. This service is crucial for the operation of smart card readers.
Ensure the service is set to "Automatic" and is currently running. If not, right-click, select "Properties", set the startup type to "Automatic", and click "Start".

Driver Verification and Update:

Verify the smart card reader's driver is correctly installed and up to date. Device Manager (devmgmt.msc) can be used to check for any issues with the smart card reader (often listed under "Smart card readers").
If there is a yellow exclamation mark next to the device, it might indicate a driver issue. Try updating the driver by right-clicking on the device and selecting "Update driver".

Check for Software Conflicts:

Conflicts with other smart card management software installed on the system can cause issues. Ensure there are no other smart card utilities running that might interfere with the Smart Card Resource Manager service.

Windows RDP Issue:

If you are accessing the system via Remote Desktop Protocol (RDP), note that smart card readers might not be redirected correctly to the remote session. Local solutions like using a different remote access tool or ensuring proper configuration for smart card redirection in RDP might be necessary.

Windows Updates and System Reboot:

Ensure your system is up to date with the latest Windows updates, as some updates might contain fixes for smart card-related issues.
A system reboot can sometimes resolve transient issues affecting the Smart Card Resource Manager service.

Advanced Service Configuration:

If the issue persists, deeper investigation into Windows Event Logs for specific error messages related to the Smart Card Resource Manager might reveal more insights. This step might require IT support if you're not comfortable navigating system logs.

Implementing these steps should help resolve the issue with the Smart Card Resource Manager not running, ensuring proper communication between your smart card reader and the software.

8. Communication error with virtual smart card atr 3B8D0180FBA000000397425446590401CF

Based on the information provided and the ATR (Answer to Reset) 3B 8D 01 80 FB A0 00 00 03 97 42 54 46 59 04 01 CF, or without spaces 3B8D0180FBA000000397425446590401CF it's clear that the SIM Editor is attempting to communicate with a virtual smart card, not a physical SIM card. This virtual smart card is likely provided by Microsoft, as indicated by the ATR details.

https://smartcard-atr.apdu.fr/parse?ATR=3B8D0180FBA000000397425446590401CF

Given that the smart card ATR is identified as a Microsoft Virtual Smartcard provided through VMware Workstation, the issue may arise from VMware's virtualization of smart card devices. To address this issue:

1. Check VMware Workstation Settings: Access the virtual machine settings within VMware Workstation and verify if the smart card device is listed. If it is, you should have the option to disconnect or remove the virtual smart card device from the virtual machine.

2. Adjust Device Redirection: Ensure that the virtual machine is not set to automatically connect new USB devices (which could include smart card readers) by default.

3. VMware Tools: Verify that VMware Tools is installed and up to date on the guest operating system, as this software suite manages the integration between the host and virtual machine, including smart card reader passthrough.

4. Host System Settings: On the host system, confirm that the physical smart card reader is not being shared or used by another virtual machine or service.

5. RDP or Other Remote Services: If an RDP session or another remote service is active, ensure that it is not set to redirect or share smart card devices with the remote system.

6. Direct Physical Access: If possible, run the SIM Editor directly on the host system where the physical smart card reader is connected, avoiding the use of virtual machines or remote desktop services.

If the issue persists after these steps, it may be necessary to consult with VMware's support for specific guidance on managing virtual smart card devices within their workstation product.

If you are not using VMWare, here are some refined steps to troubleshoot and potentially resolve the problem:

1. Check for Hidden Devices in Device Manager:

- Open Device Manager on your computer.

- Click on the 'View' menu and select 'Show hidden devices'.

- Look for any virtual smart card readers that may be present and right-click to disable them if they are not in use.

2. Verify Smart Card Services:

- Press `Win + R`, type `services.msc`, and press Enter.

- Scroll down to find 'Smart Card' service.

- Ensure the service is set to 'Automatic' and is running. If not, right-click on it, select 'Properties', set the 'Startup type' to 'Automatic', and click 'Start'.

3. Remote Desktop Services and Virtualization Software:

- If you are using Remote Desktop Protocol (RDP) or virtualization software like VMware, they could be interfering with the smart card reader detection.

- For RDP: Check the local resources settings to ensure that smart cards are not being redirected to the RDP session.

- For VMware: Verify the virtual machine's settings to ensure the physical smart card reader is being used and no virtual smart card devices are added to the hardware list.

4. Dedicated PC with Smart Card Reader:

- Use a dedicated PC with a smart card reader for the SIM Editor. This can help avoid conflicts with any virtual smart card readers that might be present on your system.

5. Consult Microsoft Support:

- Since the virtual smart card is from Microsoft, consulting their support might provide specific guidance or tools to resolve the conflict.

These steps should help isolate the problem and allow the SIM Editor to communicate with the physical SIM card instead of the virtual smart card.

9. SMAOT500, SMAOT500A, SMAOT500B, SMAOT500B234FF , 5G card

Technical Details:

URSP and SNPN support is basically the same requirement on the SIM card.

Network Slicing such as URSP : only on SMAOT500B

SNPN support : only on SMAOT500B

Non-3GPP Network Access (Future) : SMAOT500A, SMAOT500B (not as default on our cards but we can easily add service and file to the cards)

NAI SUPI type: SMAOT500A, B. Service 130 + EF 4F09

C-V2X in 5G (Future) : SMAOT500B

iii. 5G specifics (SUPI types, SUCI calc in ME/USIM, network public key)

For our current 5G card, support is for IMSI as SUPI, and this is by far the most common among our customers. NAI SUPI type non-tested.

[TITLE] eSIM Portal products and eSIM commissioning services (SM-DP/SM-SR)

M2M or Consumer type

Consumer. M2M is work in progress. Probably Q3 2024

bootstrap profile and/or production network profile download options

Access to Wifi necessary. Scanning QR code downloads SIM profile to phone.

Our eSIM Platform Features:

- Hosted on a GSMA/SAS-accredited secure site for subscription management.

- Enables users to download a digital SIM profile to their device via a QR code generated by our platform.

- Quick onboarding: Customers can start distributing QR codes within days of signing up.

- Device Compatibility: Supports only consumer devices with eSIM capability. For a list of compatible devices, please visit https://www.usmobile.com/blog/list-of-esim-compatible-devices/.

- Our primary offering is a SaaS model, where we agree on one or multiple profiles.

Cost structure:

- One-time setup fee that includes one profile.

- Additional one-time fees for extra eSIM profiles, if applicable.

- Annual subscription fee for eSIM portal access.

- Per download/install cost for each eSIM.

- No limit on the number of eSIMs in the portal based on your PLMN, with costs primarily related to downloads after initial setup.

Demo and Testing:

- We offer live portal demonstrations and can set up a test/PoC with test eSIMs for your network.

Required Input Files:

• PLMN

ICCID start

IMSI start

SPN

FPLMN (optional)

HPLMNWACT (optional)

UST (USIM services)

Workflow:

- We build the eSIM profile.

- Test a few eSIMs (included in the PoC).

- Upon acceptance, we upload a range of profiles to the portal.

- We provide you with an output file containing IMSIs, Kis, etc., for HSS import.

- Create your accounts in the portal for eSIM management.

QR Code Distribution:

- QR codes can be downloaded individually or in batches for you to distribute.

- Option to send QR codes directly to specific email accounts from the portal.

- Smartjac can print QR codes on cards for alternative distribution methods.

10. SUCI data

The SMAOT500A/B type of cards are 5G cards and support SUCI.

They have some default values in SUCI and other files, so if you enable service 124, it will use the SUCI data in file 4F07. You can use that data or edit your own.

The files below are present on our 5G cards and are editable with our SIM Editor software or any other SIM editing software as long as you have ADM keys from us.. But there is no interpretation yet for those files in our SIM Editor.

The SUCI key can be maximum 64 bytes for Profile B, and is always 32 bytes for Profile A. See samples below. SUCI uses assymetric cryptos ( Curve25519 and Secp256r1) not supported in all the old standard 3G/LTE SIM cards. You must generate key pairs with the above cryptos, the private key goes to the network and the public key on the cards.

5G files are under USIM in DF 5FC0 and DF 5FD0. USIM / DF 5FD0 / 4F01 (SUCI_CALC_INFO) is only used if service 125 is activated in UST and should contain same data as USIM/5FC0/4F07

Please see information below.

5FC0

4F01; 5GS3GPPLOCI

4F02; 5GSN3GPPLOCI

4F03; 5GS3GPPNSC

4F04; 5GSN3GPPNSC

4F05; 5GAUTHKEYS

4F06; UAC_AIC

4F07; SUCI_Calc_Info

4F08; OPL5G

4F09; NSI

4F0A; Routing_Indicator

5FD0-SAIP

4F01; SUCI_Calc_Info_USIM

And besides that, UST (USIM service table) is bigger than on older 3G/LTE SIM cards (5G uses up to service 132 in UST) .

Other settings to look at are:

4F06; UAC_AIC: Should be 00 00 00 00

And default Routing Indicator, 4F0A; Routing_Indicator, is 71, meaning 17, but a more typical value is F1 FF FF FF, meaning indicator 1.

We recommend using services 122,123 and 124 if SUCI data is present. If service 124 is disabled then Null scheme will be used for SUCI.

Note:

Protection Scheme (PS) Identifier 01 (profile A): Identifier 01 is always Profile A

Protection Scheme (PS) Identifier 02 (profile B): Identifier 02 is always Profile B

sample below with Profile A and Null scheme:

A0 04 01010000 A1 25 800101 8120 F3101C0053133D58996E2DCF66387504997241121BA1384C828F2F6FB9917715



A0	04	01010000	A1	25	800101	8120	F3101C0053133D58996E2DCF66387504997241121BA1384C828F2F6FB9917715
List tag	ID List length 4	PS 01 (profileA) + null	Public Key list tag	Length (hex)	index 1, length of id, ID	key tag, length of data, compressed data	key

Where

A0: List tag (always starts with this)

04: ID list length in bytes, so 04 means 4 bytes = XX XX XX XX

01010000: ID List: Protection scheme 1 "0101" (profile A and index 01, first key in the key list) + Null scheme "0000"

A1: Public key list tag (always comes after the list tag data)

25: Length of the rest of the data in hex (hex 25 = 37 dec), so 37 bytes of data from here

800101: (80) tag indicating data is for index , [01] length of the ID, [01] ID

8120: [81] key tag indicating public key is coming, [20] = 32 bytes indicating length of the public key

the rest is the public key 32 bytes long.

Note that Profile B should have a 64 byte long Public key length

Note also that most of our customers actually using SUCI, mostly only uses Profile A + Null scheme.

Below is the sample data the SUCI often is prefilled with on our 5G cards (same as in Excel sheet). The order is Profile B, Profile A, Null Scheme as Profile B is the most secure with it's 64 bytes of data.

A006020101020000A16B80011B81410472DA71976234CE833A6907425867B82E074D44EF907DFB4B3E21C1C2256EBCD15A7DED52FCBB097A4ED250E036C7B9C8C7004C4EEDC4F068CD7BF8D3F900E3B480011E81205A8D38864820197C3394B92613B20B91633CBD897119273BF8E4A6F4EEC0A650

Explanatory of the sample data:

A0, A1, 80 and 81 are "tags" often (always) followed by a length (in bytes and in Hexa format)

A0 : Protection Scheme Identifier List data object tag

06 : Identifier List length (following 6 bytes)

02 01 01 02 00 00 :

Where 02 01 : Protection Scheme (PS) Identifier 02 (profile B) with Key index 01 (refers to the first Network Public Key entry in the Home Network Public Key List below),

and 01 02: PS Identifier 01 (profile A) with Key Index 02 (second Public key entry),

and 00 00 : Identifier 00 with Key Index 00 (null scheme)

A1: Home Network Public Key List data object

6B: Total length from here to end in bytes (6B = 107 bytes)

80: 01 : 1B (Index 01, length of id, Public Key identifier 1 = 1B)

81: 41: 04 Tag for key, Length of data (41 = 65 bytes), flag 04 -> uncompressed data

The public key of key index 1 and identifier 1B:

72DA71976234CE833A6907425867B82E074D44EF907DFB4B3E21C1C2256EBCD15A7DED52FCBB097A4ED250E036C7B9C8C7004C4EEDC4F068CD7BF8D3F900E3B4

80: 01: 1E (Index 02, Public key Identifier 2 = 1E)

81: 20: Length of Public Key (20 = 32 bytes)

The public key of key index 2 and identifier 1E:

5A8D38864820197C3394B92613B20B91633CBD897119273BF8E4A6F4EEC0A650"

Note for HSS/Core: Home Network Private Key:

C53C22208B61860B06C62E5406A7B330C2B577AA5558981510D128247D38BD1D

Reference: ECIES test data from 3GPP TS 33.501

We will soon have a tool to both generate SUCI keys and properly format the SUCI_Calc_Info based on the generated keys if you're interested.

11. TUAK – Requests about using TUAK instead of Milenage

Hello,

I wanted to let you know that transitioning to the TUAK algorithm is feasible, but it requires some reprogramming and the creation of new files. Fortunately, we have scripts ready to assist with this process.

It’s important to note that for TUAK, the OP key must be extended to 32 bytes—twice the size of the Milenage OP key. Consequently, the resulting OPc will also be 32 bytes. These keys are to be stored in designated files. Currently, the SIM Editor lacks built-in support for TUAK keys, necessitating manual entry of the keys into the new files.

Additionally, you’ll need to use Python to calculate the correct checksum for the TUAK Ki and OPc keys. The setup also involves configuring a specific file, and after that, during authentication, AMF values are used in determining whether to use Milenage or TUAK, adding complexity to the process.

If you provide me with the test TUAK Ki and OP keys you intend to use, I can prepare some scripts and a comprehensive guide to navigate the configuration. Please note, I will require a few days to prepare these materials thoroughly.

Looking forward to your response and any further information you can provide.

TUAK configuration parameters are these below stored in 62F1:

00 7D 10 08 10 10 08 01

- AMF: `007D`

- Subscriber Key (TK) Length: `16 bytes`

- Message Authentication Code (MAC) Length: `8 bytes`

- Confidentiality Key (CK) Length: `16 bytes`

- Integrity Key (IK) Length: `16 bytes`

- Expected Result (RES) Length: `8 bytes`

- Keccak Iterations: `1`

TUAK cards has:

TK: 77777777777777777777777777777777

TOP: 00112233445566778899AABBCCDDEEFF00112233445566778899AABBCCDDEEFF

=TOPC: 8836E0D2BBF4FD01A02ED46FEAEB84143E5E8141E1A2978BC5BC84EF17318876

TK is stored in 62F2

77 77 77 77 77 77 77 77 77 77 77 77 77 77 77 77 A0 33 FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF

Note: 77777777777777777777777777777777 CRC-CCITT (XModem) Checksum: A033

TOPC is stored in 62F3

01 88 36 E0 D2 BB F4 FD 01 A0 2E D4 6F EA EB 84 14 3E 5E 81 41 E1 A2 97 8B C5 BC 84 EF 17 31 88 76 CA EA

Note: 8836E0D2BBF4FD01A02ED46FEAEB84143E5E8141E1A2978BC5BC84EF17318876 CRC-CCITT (XModem) Checksum: CAEA

On the TUAK cards, if Milenage is used, it will have the keys stored same as described below:

12. URSP / NSSAI

Hello,

Our version B of our 5G SIm card, SMAOT500B supports URSP.

The URSP file is to code data for Route Selection Policies used by the UE to determine how to route outgoing traffic. Also called Network slicing.

3GPP / ETSI information is below, but better information is in the enclosed PDF from Trusted Alliance.

Trusted-Connectivity-Alliance-5G-SIM_FINAL (1).pdf

4.4.11.5 EFURSP (URSP)

If service n°132 is "available" in EFUST, this file shall be present. This EF contains UE Route Selection Policies per PLMN. The format ofthe UE Route Selection Policies are specified in 3GPP TS 24.526 [109].

Identifier: '4F0B'		Structure: BER-TLV			Optional
SFI: Optional
File size: > (L0 + X1+X2+…+XN +L1+L2+…+LN + 3 x N) bytes			Update activity: low
Access Conditions: READ PIN UPDATE ADM DEACTIVATE ADM ACTIVATE ADM
Bytes	Description			M/O	Length
1 to L0 +1	URSP Rules data object			O	L0 +1
+X1+X2+…+XN					+X1+X2+…+XN
+L1+L2+…+LN					+L1+L2+…+LN
+ 3 x N					+ 3 x N

- URSP Rules data object coded as follows:

Description	Value	M/O	Length
URSP Rules data object tag	'80'	O	1 byte
URSP Rules length	X1+X2+…+XN +L1+L2+…+LN + 3 x N	O	L0 bytes (note)
PLMN 1		O	3 bytes
Total length of URSP rules for PLMN 1	X1	O	L1 bytes (note)
UE Route Selection Policy rules for PLMN 1		O	X1 bytes
PLMN 2		O	3 bytes
Length of URSP rules for PLMN 2	X2	O	L2 bytes (note)
UE Route Selection Policy rules for PLMN 2		O	X2 bytes
…
PLMN N		O	3 bytes
Length of URSP rules for PLMN N	XN	O	LN bytes (note)
UE Route Selection Policy rules for PLMN N		O	XN bytes
Note: The length is coded according to ISO/IEC 8825-1 [35].

Example

EF_URSP (URSP)

Logically:

URSP rules for one PLMN only

- PLMN: 246 081

Rule Precedence = 0

Traffic descriptor:

- DNN = TestGp.rs

Route Selection Descriptor:

- Precedence = 0

- Network Slice Selection, S-NSSAI: '01 01 01 03' (ST: MBB, SD: 010103)

Coding:

Sample data: 80 22 42 16 80 1E 00 1C 00 00 0C 88 0A 06 54 65 73 74 47 70 02 72 73 00 0B 00 09 00 00 06 02 04 01 01 01 03

80: tag

22 : length of data (34 bytes)

42 16 80 : PLMN (246 081)

1E : length of rules for PLMN 1 (30 bytes)

00 : Rule precendence 0

1C : Length

00 00 0C 88 0A : don't know check 3GPP TS 24.526 clause 5.2

06 : probably length of traffic descriptor name (TestGp)

54 65 73 74 47 70 : "TestGp"

02 : length of domain (rs)

72 73 : "rs"

00 0B 00 09 00 00 06 02 04 : don't know check 3GPP TS 24.526 clause 5.2

01 01 01 03 : Network Slice Selection, S-NSSAI: '01 01 01 03' (ST: MBB, SD: 010103)

13. ViLTE / ViNR

Hello,

There are no additional requirements for ViNR / ViLTE in relation to VoLTE / VoNR The same files in ISIM application are used for IMS registration and authentication procedures.

ViLTE / ViNR is entirely managed at device level. It is built on top of VoLTE / VoNR and the only requirement in card side is that the card is used for IMS-AKA procedure.

The role of the USIM/ISIM in VoLTE/VoNR is only to provide access / authentication to the IP Multimedia Subsystem (IMS).

Authentication to IMS is using the same mechanism as authentication to the LTE or 5G network.

So any card working on VoLTE / VoNR should also work for ViLTE / ViNR provided that the device supports this service and the procedures required for it.

In SIM Editor you should make sure that ISIM Auth keys are also checked and created during creation of scripts. ISIM Auth keys needs to be provisioned as well as IMPI, IMPU and Domain.

14. general info regarding ISIM and IMS APN information:

Short answer:

The IMS registration protocol (and the call initiation session as well) is SIP. And after initiation session IMS APN information is returned by the HSS.

Long answer:

Under an LTE coverage, a VoLTE device (mobile, tablet, etc.) will automatically perform an LTE Attach followed by an IMS registration for VoLTE if supported by the network. The LTE Attach phase will occur even when VoLTE services are not available. If the operator has already deployed LTE and it’s adding VoLTE services, such as incoming calls, outgoing calls, and supplementary services the only real difference lies in IMS registration for the new services.

The IMS registration protocol (and the call initiation session as well) is SIP. Due to this, after IMS APN information is returned by the HSS, the UE sends the following registration information:

“+sip.instance” containing an IMEI URN
The IMS Public User Identity, IMPU , e.g: “tel:+447700900123”.
The IMS Private User Identity, IMPI , as an NAI: e.g. username@realm

In the most common scenario, the UE will retrieve the Private User Identity and the Public User Identity and the shared secret (necessary to the IMS-AKA authentication) from the UICC, (the SIM card). All information needs to be provisioned in the HSS so subscribers can successfully register the device in the IMS.

From the IMS point of view, the three distinctive parameters to be provisioned in the HSS (apart from the subscriber profile) that distinguish what makes a subscriber unique are retrieved from the UICC.

15. We are using 5G_AKA authentication currently. Could you let us know if the SIM card that we have supports EAP_AKA_PRIME, too?

Yes, all 5G cards to our knowledge supports both, and no there is no configuration to be made on the card for that.

EAP_AKA_PRIME is actually EAP_AKA

Primary Authentication of the UE and AKMA: When a UE registers with the PLMN for the first time, the network performs a primary authentication of the UE. Only after the successful primary authentication of the UE, the UE is authorized for additional network services. 3GPP has specified two protocols 5G-AKA and EAP-AKA’ for primary authentication, both of which can be executed over 3GPP access and non-3GPP access.

16. Questions and answers about ICCID

ICCID components:

MM CC II NN NNNN NN NNNN (CH)
MM = Constant (ISO 7812 Major Industry Identifier) (89)
CC = Country Code; II= Issuer Identifier (Operator)
N {12} = Account ID
Sample ID; DDMMYY XX NNNN (Date,Issuer,ID)
CH = Checksum calculated from the other 18 digits using the Luhn algorithm.

Customer question: I’d like to have the ICCID including the check digits on the cards, for both human readable and DM code. So 18+1 digits, is that supported?

Our answer: In our current automated system, we can either enter the plain ICCID without checksum to be printed, or read the full ICCID (20 digits) and print it. As we always use 18 digits for the ICCID, the full ICCID would be 18 digits for ICCID + checksum + 'F'

Customer question: So your default ICCID is actually telling “Telia Sverige AB”?

Just to know, I personally wouldn’t care for R&D cards, just for final customer orders.

Our answer: We can change ICCID according to customer request. All our new batches of cards actually starts with 8999… where 99 is the acceptable digits for private networks.

Customer question: I need some hint on the ICCID lengths.

I have SIMs from several sources on my desk and some use 19 digits, like you, and others use 20 digits (samples from SIM manufacturers and my used SIMs from foreign operators, no exotic countries … except LycaMobile US: 89-1-960-xxx, none from Russia +7-xxx).

From what I learnt on the net is, 19 digits is stipulated by ISO7812, 20 digits come from an older GSM spec, there are even 21 digits possible by GSM.

Our answer: Even 22, but the size of our ICCID file only allows 20 digits in total.

Some use the dialing country code, some use the MCC for 2^nd field;

Our answer: In our opinion dialing country code is more common

Customer question: So both (all) length can be used? Admitted, the ICCID is not used in the real mobile network.

Our answer: We've had customers using 000000000000000001 as the first ICCID. There are no regulated rules. I would recommend you see it as a serial to keep track of your cards. If to be used anywhere in the world I would go for 8999... and then you could set a number for customer or non-specific end customer in the II, and other numbers for specific customers you may have in case we produce them in some kind of customer batches for you, followed by production date of the cards and then an ID.

19. Questions

Q1:
I have to deal with a 5G private SA network that has no SMS nor USSD feature, hence no trigger for OTA can be sent to the SIM cards.

I have seen from at least two other major SIM manufacturers that they both offer a kind of "polling app" that is configured to poll the OTA server on a preconfigured IP or even URL + DNS configured via https upon configurable events, e.g. power on, network attached, changed roaming network, some configurable time has eleapsed.
The app is somehow not visible in EF.DIR though ...

Question is whether you can offer that one as well and how will the parameter be configurable? Only in a customized SIM profile? In some hidden/secret EFs that could be updated via OTA?
Or if we have a customized profile, per production run / per order based on this profile?

Answer: We have no polling app. Most OTA solutions are based on SMS, how would this customers OTA work ? I can do some inquiries to see what our suppliers have, but it will take some time probably.

Q2:
ADF.USIM/DF.5GS/EF.SUCI_CALC_INFO
5FC0/4F07

There are two modes for SUCI calc, in ME or inside USIM, switched by UST service°125.
Q1) Is the file also made visible when USIM shall calculate SUCI, that is srv°125=AVAIL?
if not, is the file then just hidden but accessible for the USIM app? How else does the USIM app then gets to know about the public key(s)?

Answer: If service 125 activated, normal SUCI Calc Info becomes hidden and another file needs to have the keys. So provisioning should be both files (5FC0/4F07, 5FD0/4F01) just in case.

SUCI question:
ADF.USIM/DF.5GS/EF.SUCI_CALC_INFO
5FC0/4F07
I understood that the public keys are network specific and SmartJac has just selected the test defaults from TS 33.501 for your "default" SIM profile.
Of course the settings can be changed in a SC reader or via OTA, but for OTA you need to be attached first ...

Assuming when dealing with several private networks, one could specify the public key(s) in the order customization XLS as like as we'd do for IMSI range.

Answer: Yes, simplest is to include SUCI Calc Info in the Excel sheet we provide.

Question: We need VoLTE or VoNR support on the SIM cards

Answer:

WE have both LTE cards and 5G cards supporting IMS with ISIM application in the cards. The LTE card is for VoLTE and 5G card supports the VoNR.

LTE card article number is SMAOT100A234FF and 5G card SMAOT500B234FF.

You can have them either supporting XOR or MILENAGE authentication.

20. Technical Specs for our SIM cards

SIM CARD Software Features

· Java Card JVCM/JCRE/JCAPI 3.1.0

· Text Box: Crypto Algo for Privacy Elliptic Curve Integrated Encryption Scheme( ECIES)
• Profile A: Curve25519
• Profile B: Secp256r1
• Null scheme (No Privacy)
Over-The-Air (OTA) • GP Amendment B (OTA over HTTPs)
• SMS
• Activation /deactivation of 5G Services and SUCI configuration 3GPP Release 16

· GlobalPlatform 2.3

· OTA

· OTA over SMS / AES ciphering

· OTA over CAT-TP

· OTA over HTTPs / GP2.2 Amd B v1.1.3

· Authentication applications

· 4 logical channels

· SIM, USIM , ISIM, PKCS15

· Authentication algorithms

· Text Box: Chip • SC22 ; SCF650U
• HW crypto accelerator
• 128 kB Flash Memory for customer profile
• 6 kB RAM Memory
Authentication algorithm • Milenage
• TUAK
• Dual activation of TUAK and Milenage Milenage or TUAK or XOR

· Cryptographic features for OTA

· CRC16, CRC32

· DES, 3DES, AES 128/192/256 bits

· AES CRT

· HTTPs OTA

· Java Card™ Cryptographic APIs

· CRC16, CRC32

· DES, 3DES, AES 128/256 bits

· User memory : 128 kB

Hardware Features

· 32-bit CPU in 90 nm CMOS technology

· Max frequency 44 Mhz

· DES, AES, RSA, ECC Hardware accelerator

· Supply voltages range: Class A,B,C

· Memory Endurance : Up to 500,000 Cycles

Specific Features

· Global Platform Am A,B,C,D,E

Model	SMAOT
Dimensions	CR80 (1FF) – 54mm x 86 mm, 2FF(mini), 3FF(micro), 4FF(nano)
Weight	<10 g
Components	Silicone (chip) + plastic (card-body)
Voltage and capacity	1,8V – 5,5V
T° of operation	-25 - +85
Certifications	RoHS/REACH

Parametrics - chip	SC22
Ambient Temperature min max	-25 °C 85 °C
Applications	SIM and UICC for mobile communication
Asymmetric Cryptography	ECC up to 521-bit ; RSA up to 4096-bit
CPU	32-bit
Interfaces	ISO 7816
NVM	128 KBytes
Product Description	32-bit SWP SIM card security cryptocontroller
RAM	32 kByte
Symmetric Cryptography	AES up to 256-bit ; DES, 3DES
RAM	32 kByte
Symmetric Cryptography	AES up to 256-bit ; DES, 3DES

21. CRC calculations for our SMAOT cards (for Ki and Opc)

Sample snippet in Python to calculate CRC of type XModem or FFFF for both 16 and 32 bytes :

import sys

def crc16_ccitt(data: bytes, init_crc: int) -> int:

crc = init_crc

for byte in data:

crc ^= byte << 8

for _ in range(8):

crc = (crc << 1) ^ 0x1021 if (crc & 0x8000) else crc << 1

return crc & 0xFFFF

def main():

# Check for correct number of arguments

if len(sys.argv) != 3:

print("Usage: crc.py [XMODEM|FFFF] [16-byte or 32-byte hex value]")

sys.exit(1)

# Parse command-line arguments

crc_type = sys.argv[1]

hex_value = sys.argv[2].replace(" ", "")

# Check for valid input length (16 bytes = 32 hex characters, 32 bytes = 64 hex characters)

if len(hex_value) not in [32, 64]:

print("Invalid input length. Please enter a 16-byte or 32-byte hex value.")

sys.exit(1)

# Convert hex to bytes

data = bytes.fromhex(hex_value)

# Calculate and print the CRC checksum

if crc_type.upper() == "XMODEM":

crc_result = crc16_ccitt(data, 0x0000)

print(f"CRC-CCITT (XModem) Checksum: {crc_result:04X}")

elif crc_type.upper() == "FFFF":

crc_result = crc16_ccitt(data, 0xFFFF)

print(f"CRC-CCITT (0xFFFF) Checksum: {crc_result:04X}")

else:

print("Invalid CRC type. Please use 'XMODEM' or 'FFFF'.")

sys.exit(1)

if __name__ == "__main__":

main()

22 General request for input data

Hello,

If you haven't had the chance to complete the attached Excel sheet yet, we kindly ask for your assistance in doing so at your earliest convenience. It's been pre-filled for your convenience with some data.

If you are opting to include a proprietary Operator Key (OP key), please adhere to the following steps to ensure the document's security:

1. You may encrypt the sheet using our public PGP key, which can be found in one of the tabs within the Excel file, or by utilizing the attached .asc file provided.

2. Alternatively, you have the option to password-protect the Excel sheet. If you choose this method, please send the password in a separate email to support@smartjac.com, referencing either your Purchase Order (PO) number or the name of the Excel file for clarity.

Upon receipt of your completed Excel sheet, we will produce the cards and generate an output file containing data such as ICCID, IMSI, Ki, OPc, (and optionally eKi, particularly if you opt for the application of an A4 transport key for enhanced security). It's important to note that we will employ the same level of protection for the output data file as is used for the Excel sheet you're submitting.

Should you have any questions or require further clarification, please feel free to reach out.

Best regards,

23 Public key:

-----BEGIN PGP PUBLIC KEY BLOCK-----

mQENBFzGz/QBCAC8FtzEkMUfWXOu8nAz+YxXmPxVoJeCKQ5qf15etgyi7r7QBRcs

b5YO0hjSdZgfJnxvOUlIxDWmllZfKxbS19q6fsF2eQfbQ+AYwwtbAuCWIOwqu7ap

th7Y9ljWhUz23JxG+Omau+N+bKnV9SSSNrBuntNwz/+qb+rBp0lL4BSwWJike/I5

PuU4GzzjPuo3G3eYp76Ja70ggLuCT49wvyXRSnt/0SPhvB1cINvABsJNkQ6yi22l

uIRy4Y3epOLSQUS8/IkGZ9KoiNb0qetmSzmANquWsEdwu71ULdHaJ3Hpk7X1Ne6X

+Dd3h4mAvevFzw2Yi61JQJbWf4uZ0zcQvEEpABEBAAG0KVNtYXJ0amFjIE5vcmRp

YyBBQiA8c3VwcG9ydEBzbWFydGphYy5jb20+iQFUBBMBCgA+AhsDBQsJCAcCBhUK

CQgLAgQWAgMBAh4BAheAFiEEm8unywpHv2OivpbB9cZJgsQEF+QFAmLyVp0FCQ1d

UucACgkQ9cZJgsQEF+QujQgAtZ08gpbPtbbjh7tj4khaRWE1FOa1LzNvjhKq0qNa

+o3ju0SV9wN8wgtIVo/Qi6+WQO3JyzhdcdmDKwYVb4sDZBL1L6zc4FTzYJgT/0vT

ILijHJ3cXZpwDkf2kUpOa/O0mQtX6c+ZqfmqbnJqt6WP1bIWRWZ7X2fbySb0Ny+L

rP+si5xlZAomfpMxp9gNHEIwq9pYTlRcDSg/g24dOOkNiORCAlHyqCarCm9lEiKN

7sgl+K9SptGrY2L7lKLphU+R6pt+PqGKRPx23l0PKdWLPDn/J2xw28uP+vuMOsGQ

0jFBHj3lahYARsns04JDDTluYEr4p9M9OnSU18u/djp3N4kBIgQQAQgADAUCXMbt

AgUDABJ1AAAKCRCXELibyletfHlRCACvKglMlTvfNJQSjAdAxdbncr9hUA43uc9j

LNfto3S0AYTaFm5cau3yei35V4mDuTmavpjTH039zdQ1TpGPwlu2a6RShfgx9Kmb

Qq9byOuSvC5AHZUamaY1iaU6I0JcC/XfLoMmuarYasnZTjSLNXBwVh0tbPXtFY4J

ob/bEx0uOXDQ4LFv5PQP3d9OqYRsNzFftMFJBqmOuqBKlYUW9AB018BM/vyL2jR3

EWJfFoxJe33mEHxxURSyQ/Wj5Wov2CnBytKOlTSBHBDXNhXbz3wPv6ald4XGbk2x

zPx8qyv5qUZMENjksx9BgPmdfKWYPZ9u97OS+NnxvqXEMB5JFgyyuQENBFzGz/QB

CADJBKw2/AA3dxqxSyYP9EamoiQyHuNae/80SavptHmqt7O7LY01OihczIa/2DW5

LvJc8UlMGUhacboZ6lW60SZ4iiwknKEXk0MzbRzSDZtLwG7q4+RH/Bkk/SybVGm0

REw1MvTkafkX1n88M7QTqMdOkeJNQ1rpC5cYAclv/cD5lUhSvzI6ewvj0M6GPx5d

qvaB4oz+B2IB+/fGvs+IZUHQHnRIFvTy1Sr6UQQS13Ni4McPRCWS0yhek6au5+bR

6bz0PFC4xOW8vnfF5FQdmy8ScyhpZdhdDV5o97UYk5hC9k5QlXi7KmQNU2Ae7Ir/

MdGW/k7VhTtOTewkLA55pZIVABEBAAGJATwEGAEKACYCGwwWIQSby6fLCke/Y6K+

lsH1xkmCxAQX5AUCZDfPcAUJCzNmfAAKCRD1xkmCxAQX5EnICACbpauG2b00BLes

SLFoF0Xyso8782kgw6AkbngwIfXtODgUVkth7cxCOmyNqr9lyp8EIJIoH7Q02gRS

5rJVNSb/6qPEmuMgy44xrTvJFJ2noOKhf8YjB963WUD5Ng4LRWZAfQkV68Ub6C4n

tsv7JnEY0LbxTa9mtVLYdF6z9PaZk6hzAWMgv4/QcZ2O6rufmkA1ix9cIlkNXNm3

/1Za+uf1CZJ9EB9Lm5GqqjMPH4OPzD38jT3d4A/WpCXP5/3ZUMJwv03yiKMZK1V/

gVjUDpVc+dwrA7Xtrso61/Q9TnLH7FqERU0cPiTWFr/Et9HUvv7W55f165t1QLec

y9H1mU7b

=Nzms

-----END PGP PUBLIC KEY BLOCK-----

24. card reader errors; PC/SC errors

Error 0x000006F7 is most probably a PC/SC (smart card reader) error code from Microsoft.

A: We recommend checking the communication between the smart card reader and the software. Please click the "Check ATR" button to test the communication between the software and the smart card reader. If the button does not work, it often indicates a communication issue with the card reader. If you get an ATR number please copy it and send it to us so we can rule out a virtual smart card on your system.

1. Check Smart Card Reader Connection:

- Ensure that the smart card reader is properly connected to your computer.

- Verify that the USB cable or other connection is secure.

- Sometimes, a loose connection can cause communication errors.

2. Update Smart Card Reader Drivers:

- Outdated or incompatible drivers can lead to communication problems.

- Visit the manufacturer's website for your smart card reader and download the latest drivers.

Knowledge Article View - Thales Customer Support (gemalto.com)

- Install the updated drivers and restart your computer.

3. Restart the PC/SC Service:

- The PC/SC service manages communication with smart card readers.

- Press Win + R, type `services.msc`, and hit Enter.

- Locate the Smart Card service, right-click it, and choose Restart.

- Check if the software can now communicate with the reader.

5. Check for Conflicting Software:

- Other software running on your system might interfere with the smart card reader.

- Temporarily disable any security software, firewalls, or other applications that might block communication.

- Test the software again.

6. Inspect Event Logs:

- Open Event Viewer (search for it in the Start menu).

- Navigate to Windows Logs > System.

- Look for any relevant error messages related to smart card readers.

- Investigate further based on the error details.

If Using Virtual Smart Card or RDP Software:

1. Check VMware Workstation Settings:

- Access the virtual machine settings within VMware Workstation and verify if the smart card device is listed. If it is, you should have the option to disconnect or remove the virtual smart card device from the virtual machine.

2. Adjust Device Redirection:

- Ensure that the virtual machine is not set to automatically connect new USB devices (which could include smart card readers) by default.

3. VMware Tools:

- Verify that VMware Tools is installed and up to date on the guest operating system, as this software suite manages the integration between the host and virtual machine, including smart card reader passthrough.

4. Host System Settings:

- On the host system, confirm that the physical smart card reader is not being shared or used by another virtual machine or service.

5. RDP or Other Remote Services:

- If an RDP session or another remote service is active, ensure that it is not set to redirect or share smart card devices with the remote system.

6. Direct Physical Access:

- If possible, run the SIM Editor directly on the host system where the physical smart card reader is connected, avoiding the use of virtual machines or remote desktop services.

Microsoft issue:

The error message you’re encountering, “the stub received bad data,” Let’s explore some potential solutions to resolve this issue:

Run the System File Checker (SFC):

Open Command Prompt as an administrator.
Type the following command and hit Enter:

o sfc /scannow

The SFC tool will scan and repair any corrupted system files. Check if the issue persists after running this command

Run the Deployment Imaging Service and Management Tool (DISM):

Open Command Prompt as an administrator.
Execute the following commands one by one:

o DISM.exe /Online /Cleanup-image /Scanhealth

o DISM.exe /Online /Cleanup-image /Restorehealth

The DISM tool checks system health and restores files if necessary. It might take some time to complete, so be patient

25. Self provisioned / customer provisioned SMAOT500B234FF cards not Authenticating

Let's address the potential causes for the behavior you're seeing.

Provisioning Data and Checksums:

Please share the provisioning data used, including the checksums for the Ki and OPc when writing one of the cards.
This will help us verify if there are any discrepancies in the key material.

Files and EF Provisioning:

Could you specify which files/EFs you provisioned and with what data? Understanding this will allow us to ensure that all mandatory fields are correctly written.

SUCI_Calc_Info and Key Mismatches:

If SUCI is used and there's an issue in the SUCI_Calc_Info parsing or a key mismatch with the private key in the UDM, the MSIN might not be encrypted correctly, leading to an incorrect IMSI.
Please verify that the SUCI-related calculations and keys are correctly configured.

Verify File Provisioning:

Make sure all essential EFs are provisioned. Common EFs include:

EF IMSI: Contains the IMSI.
EF Ki: Contains the authentication key.
EF OPc: Contains the Operator Configuration.
EF SUCI_Calc_Info in 4F01: Contains data for SUCI calculation when performed by UICC
UST
HPLMNwACT
AD

Check SUCI Configuration:

Verify the SUCI_Calc_Info and ensure it matches the private key in the UDM. Any mismatch here can lead to incorrect IMSI encryption.

What UE / Phone are you testing with ? If Apple device, note that IOS17 is needed and only limited PLMN's are permitted by Apple.
Logs and Diagnostics:

Although you mentioned no logs were shared, if possible, providing logs or any diagnostic information would greatly aid in pinpointing the issue.
Look into the AMF logs for any errors related to authentication and registration.

Summary

Can you provide the exact provisioning data and checksums for the Ki and OPc?
What specific EFs did you provision, and what data was used?
Are there any logs or diagnostic outputs from your testing that you can share?

26. We noticed that using your SIM cards, this device is not sending any registration requests towards the gNB.

Thank you for reaching out regarding the issue with the 5G SA SIM cards. Let's try to troubleshoot the problem step by step.

Check the Device Configuration: It's difficult to determine if this particular device needs any specific configurations. It could be related to the Ki/OPc keys, but normally, if there is an issue with these keys, the device should still attempt to register.

Test on Another Device: Can you try using another phone to see if the issue persists? This will help us determine if the problem is device-specific.

Collect Communication Traces: Are you able to get any communication traces between the phone and the network? These logs can provide insights into what might be going wrong during the registration process.

Check PLMN Compatibility: Is your personal SIM card using the same PLMN as the device? Sometimes, phones have restrictions regarding specific PLMNs, especially for 5G networks.

Please let me know if these steps help or if you need further assistance. I am here to support you through this process.

27. eSIM / SMDP+ in-house and locally.

While this is certainly possible, it comes with significant cost and operational considerations.

1. Cost: Implementing an in-house SMDP+ and management system is a substantial investment. The project cost could range from $500,000 to $1,000,000, including GSMA certification, excluding ongoing operational costs and licensing fees (both one-time and recurring). But this is a rough estimate only.

2. Certification and Security: The SMDP+ server must be approved and certified by GSMA to ensure eSIMs can be installed on commercial phones. This certification involves meeting rigorous security requirements, adding complexity and time to the project.

3. Infrastructure: The SMDP+ server needs to be accessible from the internet to allow phones to download the eSIM. Using this option requires a cybersecurity team to manage IDP and IDS of course. Alternatively, the phones must be within an internal network, which can limit flexibility and increase management overhead. Users can only download eSIMs when the private WiFi network is within reach.

4. Operational Expertise: Managing such a system requires dedicated staff with specific expertise in eSIM technology, security, and network management of course.

We have the partners to solve this. We could reach out to our partners to propose a comprehensive solution. This project will involve different actors, where Smartjac could play a key role as part of the project management team. We can also handle eSIM profiling and other crucial aspects of the eSIM. But other partners needs to be involved for the smdp+ server, eSIM management system, API’s and authentication management, GSMA certification and so on.

28. attempt to log into 3G networks before connecting to LTE

Thank you for providing detailed information about the issue you are facing with the SIM cards. Based on your description, it seems that the phones supporting voice & data services are attempting to log into 3G networks before connecting to LTE, which is causing a timeout at the MAP level as you do not operate an HLR.

To address this, we have a few suggestions and questions to ensure we can steer devices away from 3G networks and prioritize LTE connections.

1. UST (USIM Service Table) Check:

- Could you please confirm which services are enabled in the UST on your SIM cards? You could try to:

- `Service 27` (GSM Access): Ensure this is deactivated to possibly block 3G access.

2. EF Files Configuration:

HPLMNwAct is configured on your cards with Access Technologies NG-RAN (prio 1) and E-UTRAN (prio 2)
You could try to configure the `PLMNwACT` file to ensure they prioritize only 5G and LTE networks. This setting should list NG-RAN and LTE (E-UTRAN) and exclude 3G (UTRAN).

3. Network Steering:

- Implementing Enhanced Steering of Roaming (SoR) can help in directing devices to prefer LTE networks and avoid 3G. You just enable Service 127 in UST to test that. It should retrieve data from HPLMNwAct regarding network preferences.

I have no experience in the Nr 3, and it's probably a 5G feature, so you may not have if you have an LTE type of Network. You can read about Enhanced Steering here: https://www.etsi.org/deliver/etsi_ts/123100_123199/123122/18.06.00_60/ts_123122v180600p.pdf

29. not being able to see your network (PLMN) from your mobile equipment (ME)

To address the issue of not being able to see your network (PLMN) from your mobile equipment (ME), refer to the 3GPP TS 23.122 specifications outlined in the document. Here are the key points and actions you can take:

1. PLMN Selection and Roaming:

- Automatic Mode: The device automatically selects the highest priority PLMN that is available and allowable based on a predefined list. If the automatic mode fails to find a network, it will continuously search for the highest priority PLMN that is available【31†source】.

- Manual Mode: The user manually selects a network from a list of available PLMNs displayed by the device. Ensure you are selecting the correct network manually if the automatic selection is not working【31†source】.

2. Forbidden Location Areas:

- Your device might be in a location area or tracking area that is forbidden for roaming. This information is stored in the device and prevents it from attempting to connect to these areas repeatedly【31†source】. Check if your current location is marked as forbidden and if so, move to a different area or reset the device settings to clear the forbidden list.

3. Signal Level and Network Availability:

- Make sure your device is in an area with adequate network coverage. Sometimes, signal levels can be too weak for the device to register on the network. Try moving to an area with better signal strength【31†source】.

- Cell Selection and Reselection: Your device might not be able to find a suitable cell to camp on. Ensure that the SIM card is correctly inserted and that the device is configured to automatically select a network【31†source】.

4. Network Configuration and Settings:

- Check the device settings to ensure it is configured for the correct network type (e.g., LTE, 5G). Incorrect settings might prevent the device from finding the appropriate network【31†source】.

5. SIM Profile and Authentication:

- Ensure that your SIM card is properly provisioned and the SIM profile is configured correctly. Incorrect provisioning can lead to issues with network visibility【31†source】.

6. Emergency Calls and Limited Service State:

- If no suitable network is found, the device may enter a "limited service state," allowing only emergency calls. Ensure your device is not in this state and try reselecting the network manually【31†source】.

7. NAS Behavior Configuration:

- Non-Access Stratum (NAS) configurations could affect network selection. Ensure your device's NAS settings are correctly configured to enable proper network registration and roaming behavior【31†source】.

8. CSG and CAG Selections:

- If your device supports Closed Subscriber Group (CSG) or Closed Access Group (CAG), ensure these settings are correctly configured. Misconfigurations here could prevent network access【31†source】.

9. Device and Network Synchronization:

- Sometimes, synchronization issues between the device and the network can cause connectivity problems. Restart your device to initiate a fresh network search and re-synchronization
