SMAOT500B User Manual



by John Serratusell



Copyright © 2023-2026 Smartjac Nordic AB



All rights reserved.



‌Table of contents

Table of contents 2

Table of figures 4

Table of tables 4

Table of codes 4

Introduction 5

History 6

The Introduction of USIM and Java Card Technology 6

Evolution to 5G with SMAOT500 Series 6

The SMAOT500B 7

Ideal User Groups for Smartjac SIM Cards 7

1. Authentication Algorithms 8

1.   OP or OPc in USIM 8

2.   Shared or application-specific keys 8

2. Identities 9

1.   ICCID 9

2.   IMSI 9

1.        SMAOT500B specifications 10

1. Verification codes 10

2. Authentication keys – K/OPc 11

3. SMAOT500B general technical features 14

4. Card manager keys 15

2.        USIM cards and 5G 16

1. Disabling DF_5GS files and services 16

3.        USIM/ISIM cards and IMS 17

1. Disabling the ISIM functionality 17

1. 5G Parameter Checklist 18

Use Case – Security 18

Use Case – Subscriber Privacy 18

Use Case – Network Slicing 18

Use Case – Enhanced Steering of Roaming (SoR) Service 19

Use Case – 5G Private Networks 19

Use Case – Non-3GPP Network Access 19

Use Case – V2X in 5G Network 19

Use Case – Ensuring Good Quality of Experience 19

Use Case – Network Resource Optimization 20

2. 5G Parameter description 20

1.   OPL 5G 20

2.   SUCI Calculation Information 21

1.   Default SUCI data on SMAOT500B 23

Explanatory of the SUCI sample data: 24

2.   Generating SUCI keys with Python 25

5.C.1 TUAK 26

5.C.1 URSP User Equipment Route Selection Policy 27

1.        SMAOT500B default content 28

2.        Glossary 43

3.        Bibliography / References 49



‌Table of figures

Figure 1 - SMAOT501B234FF - SMAOT500B type with XOR algorithm and trio format 5

Figure 2 - White non-printed SIM card [SMATO500B234FF] 10

Figure 3 - Technical features 14



‌Table of tables

Table 1 - Default verification codes 10

Table 2 - default card manager keys 15



‌Table of codes

Code 1 - APDU verification code 11

Code 2 - default authentication key K content 11

Code 3 - default authentication key OPc content 11

Code 4 -sample authentication key OP content 12

Code 5 - Python code to calculate CRC XModem 13

Code 6 - SUCI data sample 1 22

Code 7 - SUCI data sample 2 22

Code 8 - Default SUCI data on SMAOT500B 24

Code 9 - Python code to generate SUCI keys 25

Code 10 - URSP sample code 27



‌Introduction

The SMAOT500B is a state-of-the-art 5G UICC SIM card designed for use in 5G, 4G, and legacy networks. This manual serves as a comprehensive guide for network operators who utilize Smartjac’s SIM cards for subscriber authentication and secure communication in modern cellular networks.

The SMAOT500B is an advanced SIM solution tailored for operators focused on 5G services. It provides enhanced security features such as Subscriber Privacy Protection (SUCI), on-card SUCI calculation, User Equipment Route Selection Policy (URSP) for network slicing, and dual activation support for both Milenage and TUAK authentication algorithms.



This manual will guide you through the card’s features, its provisioning process, and how to manage authentication keys like Ki and OPc.

Please note however, that unless you have a specific support contract with Smartjac on said configuration, Smartjac will not be able to help you with questions regarding the use of SMAOT500B, particularly configurations not described in this manual.

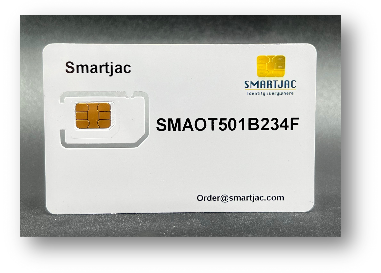

‌Figure 1 - SMAOT501B234FF - SMAOT500B type with XOR algorithm and trio format



‌History

Smartjac began selling a range of SIM cards in 2005. These early cards were provided in small quantities to meet the specific needs of customers who required customized SIM cards for test and research purposes. The cards were pre-programmed with individual identities and specific test keys such as IMSI, MSISDN, ICCID, authentication keys and PLMN data. Initially, Smartjac sourced these cards

from Gemplus (which later became Gemalto and is now part of Thales), providing a reliable platform for customers in need of test SIM’s.

Over time, customer demands grew beyond test cards. Requests for specific parameters, such as IMSI ranges and unique PLMN configurations, prompted Smartjac to introduce full personalization services. These services allowed customers to order SIM cards pre-configured with their desired network parameters, while maintaining flexibility for testing and deployment purposes.



‌The Introduction of USIM and Java Card Technology



In 2010, Smartjac took a significant step forward by launching

the SMAGT and SMAOT series of cards. Unlike their SIM-only predecessors, these were USIM cards, designed specifically for 3G networks. They supported mutual authentication as part of the UMTS AKA (Authentication and Key Agreement) protocol, providing enhanced security features for network authentication.



The SMAOT and SMAGT cards were also the first Java SIM cards introduced by Smartjac, marking a shift towards more programmable and versatile SIM technology. This allowed customers to:

·    Develop and run their own Java Card applets,

·    Utilize remote file management to update SIM card files over-the-air,

·    Implement more complex security and service applications directly on the SIM.



By 2015, Smartjac had further advanced its offering by introducing ISIM (IP Multimedia Services Identity Module) applications, specifically for IMS and VoLTE (Voice over LTE) services, and PKCS15 applications, adding secure cryptographic key storage functionality.



‌Evolution to 5G with SMAOT500 Series



In 2019, Smartjac introduced the SMAOT500A, which built on the features of previous cards but was specifically designed to support 5G, 4G LTE and 3G networks with enhanced security features. However, the rapid pace of technological advancement necessitated a further update. By 2021, Smartjac launched the SMAOT500B to address the end-of-life status of both the chip and the operating system used in the SMAOT500A and also introduced support for BER-TLV files in order to support URSP.



‌The SMAOT500B



The SMAOT500B is nearly a feature-complete successor to the SMAOT500A, with notable improvements:



o   Full support for 5G deployments, offering enhanced privacy and

security features such as SUCI (Subscription Concealed Identifier) for IMSI encryption , network slicing capabilities and URSP support.

o   Backward compatibility with legacy networks, including GSM, UMTS, and LTE, making it a versatile solution for various network environments.

o   Dual activation of Milenage and TUAK algorithms, ensuring compliance with a range of operator authentication protocols.



‌Ideal User Groups for Smartjac SIM Cards



All these features make the SMAOT500B, ideal for a wide range of users:



o   Small operators running local or regional cellular networks across technologies like GSM, GPRS, EDGE, UMTS, HSPA, LTE, and now 5G.

o   Private networks, both small and medium in scale, that require flexible, customizable SIM solutions.

o   Researchers and developers focused on SIM security, STK (SIM

ToolKit) applications, and other advanced mobile network technologies.

1.     ‌Authentication Algorithms

A GSM network can support any authentication algorithm as long as it is implemented in both the SIM/USIM and the Authentication Center (AUC) of the operator. Operators are free to choose their preferred algorithm for subscriber authentication, but implementing custom algorithms may require significant cryptographic expertise and resources.

To standardize this, the GSMA introduced the COMP128 family of algorithms,

with COMP128v1, v2, and v3. Only COMP128v3 is considered secure today, as earlier versions have known vulnerabilities. The SMAOT500A and SMAOT500B support the full set of COMP128 algorithms for legacy SIM protocols.

For USIM and ISIM applications, most networks use the MILENAGE algorithm, which is widely adopted and supported by the SMAOT500A and SMAOT500B for secure mutual authentication in modern networks.



1.        ‌OP or OPc in USIM



The 128-bit value OOP is the Operator Variant Algorithm Configuration field, which was included to provide separation between the functionality of the algorithms when used by different operators. It is left to each operator to select a value of OP. The algorithm set is designed to be secure whether or not OP is publicly known; however, operators may see some advantage in keeping their value of OP secret as a secret OP is one more hurdle in an attacker’s path.

The USIM can be configured to either store an OP value, or an OPc value. OPc is computed by XOR of OP and EK(OP). So the operator and card-issuer has the choice to either:

§ use one OP value all across his network, and store that value on each card, or

§ pre-compute a card-specific OPc value, and store that individual OPc on each card

The latter choice (OPc on card) is generally considered more secure, as the reverse engineering of one OPc does not reveal any security parameters relevant beyond that single card.



The SMAOT500B support storing either the card-individual OPc as well as the global OP value and thus gives maximum flexibility to the user.

For more details on OP and OPc as well as the rationale for preferring OPc storage on the card, see Section 5.1 of 3GPP TS 35.206 [3gpp-ts-35-206] as well as Section

8.3 of 3GPP TS 35.205 [3gpp-ts-35-205].



2.        ‌Shared or application-specific keys



Card with multiple applications, such as the SMAOT500B containing SIM, USIM and ISIM applications can either

§     use shared keys for all of those applications, meaning that one set of K and OP/OPc is used for authentication to any of those applications, or

§     use separate keys for each of those applications. This would permit separate K and OP/OPc values for each application, e.g. different keys for authentication of USIM against the radio network and ISIM against the IMS network

SMAOT500B uses shared keys.



2.     ‌Identities

There are several identities associated with the use of SIM cards.



1.        ‌ICCID

I The ICCID (Integrated Circuit Card Identifier) is a globally unique serial number assigned to SIM cards. It follows the format specified by ITU-T in

recommendation E.118 and is based on the ISO/IEC 7812 standard. The ICCID can be up to 22 digits long, including a Luhn check digit for error detection.

The ICCID is not transmitted over the radio interface, so it doesn't play a significant role in the operation of private cellular networks. On Smartjac cards, the ICCID is typically 20 digits long, consisting of 18 digits, a Luhn checksum, and an additional 'F' character. The ICCID can be overwritten as needed.



2.        ‌IMSI



The IMSI (International Mobile Subscriber Identifier) is a [supposedly] globally unique number of the subscriber of 3GPP network technology. The number must be unique in public networks, but not necessarily so in private networks.

The first 5-6 digits of the IMSI are typically comprised by the MCC (Mobile Country Code) and MNC (Mobile Network Code). The MCC specifies the country, and the MNC the card-issuing network within the country.

MNCs are assigned by the respective national telecommunications regulatory authority. The policies differ from country to country, but typically you have to be a licensed mobile network operator (with your own spectrum allocation) in order to receive a MCC allocation and hence be able to issue your own IMSIs within your MCC-MNC.

As Smartjac is not a telecom operator we do not have our own MCC/IMSI allocations - neither can we get one.

The default IMSIs pre-provisioned on our “blank” cards are normally within the MCC- MNC of 001-01 with the

IMSI: 001010123456789



1.                 ‌SMAOT500B specifications

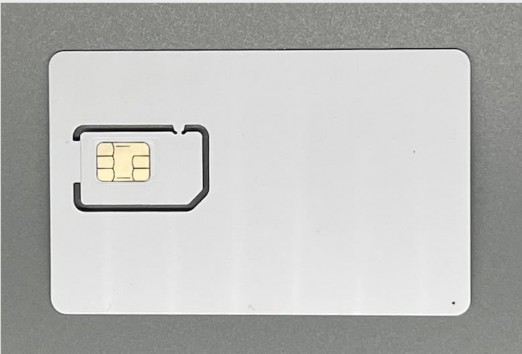

‌Figure 2 - White non-printed SIM card [SMATO500B234FF]



1.    ‌Verification codes



‌Table 1 - Default verification codes



Register	Value (default settings)	Binary value stored on card
GPIN	1234, disabled	31323334FFFFFFFF
LPIN	5678, enabled	35363738FFFFFFFF
ADM1	11111111	3131313131313131
ADM2	22222222	3232323232323232



‌Code 1 - APDU verification code





1.    ‌Authentication keys – K/OPc



K stored in:

MF / USIM / 62FC

§  18 bytes

§  62FC contains K, the network authentication key, 16 bytes, and checksum 2 bytes



OPc stored in:



MF / USIM / 62FD

§  104 bytes

§  62FD contains operator key type byte, Opc, derived operator key, 16 bytes,checksum 2 bytes and rotation/constant parameters.

EF_62FC content:

[K] [CH]



EF_62FD content:

01 [OPc] [CH]

40002040600000000000000000000000000000000000000000000000000000000000000001000000000

00

00000000000000000000200000000000000000000000000000004000000000000000000000000000000

08



Replace [K] with 16 byte K key & Replace [OPc] with 16 byte OPc key



Default data for EF_62FC on card:



‌Code 2 - default authentication key K content



77

77

77

77

77

77

77

77

77

77

77

77

77

77

77

77

A0 33



Default data for EF_62FD on card:



‌Code 3 - default authentication key OPc content



	01	DB 46 EE F8 8A 1A 4F 3B B0 5B 1A D8 80 DA 07 F2	D2 F7	40 00 20 40 60 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 02 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 08



Sample data for OP in EF_62FD on card:

‌Code 4 -sample authentication key OP content



	00	CD C2 02 D5 12 3E 20 F6 2B 6D 67 6A C7 2C B3 18	DE FE	40 00 20 40 60 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 02 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 08



[CH] is a 2 byte checksum based on the 16 byte Hex code. It has to be calculated both for K and Opc (or OP).

The checksum is a CRC calculation. More specifically a CRC-16 polynomial 0x1021 with input/initialization 0000. Also called CRC-16-XMODEM.



Online sample calculations can be done here (for example to check that your own calculations are correct): https://www.lammertbies.nl/comm/info/crc- calculation.html (use the result of CRC-CCITT (XModem))

See sample Python code on the next page.

The rest of the EF_62FD contains the Milenage configuraton constants [Ci] and Rotation values [Ri] where the below default values are provisioned, in accordance with [3gpp-ts-35-206] Section 4.1.





‌Code 5 - Python code to calculate CRC XModem





def crc16_xmodem(data: bytes) -> int: """

Compute the CRC-16-XMODEM checksum of the input data.

Parameters:

data (bytes): The data to compute the CRC on.



Returns:

int: The computed CRC value. """

crc = 0x0000 polynomial = 0x1021

for byte in data: crc ^= byte << 8

for _ in range(8): if crc & 0x8000:

crc = (crc << 1) ^ polynomial else:

crc <<= 1

crc &= 0xFFFF # Ensure CRC remains 16-bit return crc



def main():

# Get input from user

user_input = input("Enter a 16-byte hexadecimal string (32 hex characters):

")



# Validate input

if len(user_input) != 32:

print("Invalid input length. Please enter exactly 32 hex characters (16

bytes).")

return



try:



# Convert input string to bytes data = bytes.fromhex(user_input)

except ValueError:

print("Invalid hex string. Please enter a valid hexadecimal string.") return

# Calculate CRC-16-XMODEM crc_value = crc16_xmodem(data)

# Print the result

print(f"CRC-16-XMODEM Checksum: {crc_value:04X}")



if   name  == "  main  ": main()



1.    ‌SMAOT500B general technical features





‌Figure 3 - Technical features



2.    ‌Card manager keys



‌Table 2 - default card manager keys



ISD Value Max Size
%Default_Card_Manager_Key_Set_Enc_Secret_Key	456E6372797074696F6E53656 3726574	16
%Default_Card_Manager_Key_Set_Mac_Secret_Key	506572736F6E616C69736174696 F6E4B	16
%Default_Card_Manager_Key_Set_Key_Encrypt_Key	4B6579456E6372797074696F6E4 B6579	16



2.                 ‌USIM cards and 5G

The 5G/NR technology maintains full backward compatibility with existing SIM cards, meaning that no special updates or functionalities are strictly required for a USIM to operate on 5G networks. The USIM was originally introduced in 3G/UMTS Release 99, and with the arrival of 4G and 5G, 3GPP ensured that older SIM cards would continue to work on these newer networks without issues.

However, as network capabilities evolved, 3GPP introduced various optional files in later releases to support advanced use cases, particularly for 5G. The SMAOT500B includes all optional files specified for 5G up to Release 16. While the 5G functionality of a USIM is standardized by 3GPP, the SMAOT500B offers comprehensive support for these files, although the functionality itself is not unique to this specific card.



Several 5G-related parameters are contained within the USIM, primarily located in the DF_5GS directory. These files are optional, but to support certain features— such as the Subscriber Concealed Identifier (SUCI) privacy function—these files must be present. Given that Smartjac’s products are widely used in test labs, the SMAOT500B includes most of these optional files. If these files are absent, features like SUCI cannot be utilized.



By default, a blank card has UST service 124 disabled. The SUCI_Calc_Info file (4F07) within DF_5GS will remain hidden unless service 124 is activated, and service 125 (if enabled) is deactivated.

When these 5G-related files are active, they must contain valid data tailored to the specific configuration of the network. As Smartjac is not a network operator, it cannot provide predefined configurations for your network. It is the responsibility of the network operator to ensure that these files are properly configured to align with their network settings.

Detailed specifications for the contents of these files can be found in [3GPP TS 31.102], Section 4.4.11, which outlines the files under the DF_5GS director, and in the coming section 5 in this document.



1.    ‌Disabling DF_5GS files and services



If you choose not to configure these 5G files with network-specific data, you have the option to disable them. To do this:

1. Disable the related services from EF.UST (Services no. 122 through no. 135).



2.  If further action is required (since some UEs may attempt to access these files regardless of EF.UST settings), you can fully deactivate the relevant files using the DEACTIVATE FILE command, as specified in [ETSI TS 102 221] Section 11.1.14.



Smartjac provides SIM cards that adhere to all relevant 3GPP, ETSI, and ISO standards, ensuring full compliance with industry specifications.



3.                 ‌USIM/ISIM cards and IMS



IMS (IP Multimedia System) is the framework used to handle circuit-switched services like voice calls over modern 3GPP networks, including LTE/4G, NR/5G, and Wi-Fi. While IMS can function without explicit SIM configuration, relying on automatic provisioning and default settings (such as deriving the IMPI from the IMSI), more advanced configurations can be achieved in two ways:



o   By including specific files within the ADF.USIM, or



o   By utilizing a dedicated ADF.ISIM application.



These two approaches are mutually exclusive: if the ADF.ISIM application is present on the card, the IMS-related files within ADF.USIM must not be used.



The SMAOT500B includes the ADF.ISIM application and all 3GPP-specified files up to Release 16. Therefore, when using the SMAOT500B for IMS, you have two options: either ensure the card’s IMS configuration aligns with your network's settings or deactivate the ISIM and fall back on 3GPP’s default configuration.



3.    ‌Disabling the ISIM functionality



If you choose not to configure the IMS-related files to match your network, you can disable them. To do this:

1. Disable the relevant services within ADF.USIM/EF.UST.



2. Remove the ISIM application from EF.DIR.

1.      ‌5G Parameter Checklist



Legend
R//C/AM	R = SMARTJAC Recommended, C = Customer Discretion – AM = Applet & Mobile Equipment Dependent



‌Use Case – Security

Feature	R/C/AM	Recommended Value	Customer Value (Requirement)
Mobility Management	R	UST Service 20 available & Associated Files		☐
		EF User Controlled PLMN selector with Access technology (6F60)= Do not exclude 5G
		UST Service 42 available & Associated Files		☐
		EF Operator Controlled PLMN selector with Access technology (6F61) = Do not exclude 5G
		UST Service 43 available & Associated Files		☐
		EF HPLMN selector with Access technology (6F62) = Do not exclude 5G
		UST Service no.122 available & Associated files		☐
		EF5GS3GPPLOCI (4F01) = 'FFFFFFFFFFFFFFFFFFFFFFFFFF MCC MNC 000000 01’
		EF5GSN3GPPLOCI (4F02) = 'FFFFFFFFFFFFFFFFFFFFFFFFFF MCC MNC 000000 01’
		EF5GS3GPPNSC (4F03) = 'FF…FF'
		EF5GSN3GPPNSC (4F04) = 'FF…FF'
	C	UST Service no.129 available. & Associated files		☐
		EFOPL5G (4F08) configured as per project specific (Link)
Secondary keys for value added services	R	UST Service no.123 & 133 available & Associated files		☐
		EF5GAUTHKEYS (4F05) present = 'FF…FF' File size is at least 110 bytes
USAT Pairing	C	UST Service no.102 available & Associated files		☐
		EFIAL (R18+) / EF IWL (R16+) (6FF0) configured as per project specific (Link)
		EFIPS (6FF1) = 'FF…FF'
		EFIPD (6FF2) = 'FF…FF'



‌Use Case – Subscriber Privacy

Feature	R/C/AM	Recommended Value	Customer Value (Requirement)
5GS mobile identity	R	SUPI type: IMSI
Services related to SUPI protection & calculation	R	UST Service no.124 & 125 available & Associated files		☐
		EFSUCI_Calc_Info (4F07) configured as per project specific (Link)
		EFRouting_Indicator (4F0A) = ‘F0FF0000'
SUCI 5G NSWO context in GET IDENTITY command	C	UST Service no.142 available & Associated files		☐
		EF5GNSWO_CONF (4F11) = ‘01’



‌Use Case – Network Slicing

Feature	R/C/AM	Recommended Value	Customer Value (Requirement)
User Equipment Route Selection Policy	C	UST Service no.132 available & Associated files		☐
		EFURSP (4F0B) configured as per project specific (Link)
Toolkit Support	AM	TERMINAL PROFILE bit 4 of byte 36 supported – Network Slicing info PROVIDE LOCAL INFO contains Service PLMN Single Network Slice Selection Assistance Information (S-NSSAI) (Link)	N/A
Closed Access Group	AM	PROVIDE LOCAL INFO contains Closed Access Group Id	N/A
	C	UST Service no.137 available & Associated files		☐
		EFCAG (4F0D) configured as per project specific (Link)

‌Use Case – Enhanced Steering of Roaming (SoR) Service

Feature	R/C/AM	Recommended Value	Customer Value (Requirement)
Steering of Roaming (SoR) over control plane	C	UST Service no.127 available		☐
Steering Of Roaming - Connected Mode Control Information	C	UST Service no.138 available & Associated files		☐
		EFSoR-CMCI (4F0E) configured as per project specific (Link)
Toolkit Support	AM	TERMINAL PROFILE bit 5 of byte 36 supported – for Refresh SoR CMCI	N/A



‌Use Case – 5G Private Networks

Feature	R/C/AM	Recommended Value	Customer Value (Requirement)
Standalone Non-Public Network (SNPN)	C	Subscriber Identity: non-IMSI SUPI
	C	UST Service no.143 available & Associated files		☐
		EFPWS_SNPN (4F01) configured as per project specific (Link)
	C	UST Service no.146 available & Associated files & AID		☐
		EFNID (4F02) configured as per project specific (Link)
	C	USIM AID used non-IMSI SUPI: A000000087 100B	☐
Public Network integrated Non-Public Network (PNI-NPN)	C	Subscriber identity either IMSI or NAI SUPI
		USIM AID in case of non-IMSI SUPI: A000000087 100B	☐
5G Wireline and Wireless Convergence	C	Subscriber identity: NAI SUPI contains NSI, GCI, or GLI (Link)
		USIM AID for non-IMSI SUPI: A000000087 100B	☐
NAI SUPI Type Dedicated SUPI Type for private Network Access Identifier (NAI) in 5G network	C	UST Service no.130 available		☐
		Subscriber identity: NAI SUPI contains NSI, GCI, or GLI (Link)
		USIM AID for non-IMSI SUPI: A000000087 100B	☐



‌Use Case – Non-3GPP Network Access

Feature	R/C/AM	Recommended Value	Customer Value (Requirement)
Trusted non-3GPP network access	C	UST Service no.135 available & Associated files		☐
		EFTN3GPPSNN (4F0C) configured as per project specific (Link)



‌Use Case – V2X in 5G Network

Feature	R/C/AM	Recommended Value	Customer Value (Requirement)
C-V2X technology in 5G Network	C	UST Service no.119 available & Associated DF & files		☐
		DFV2X (5F3E) present under DF TELECOM (7F10)	☐
		EFVST (4F01) configured as per project specific (Link)
		EFV2X_CONFIG (4F02) configured as per project specific (Link)
		EFV2XP_PC5 (4F03) configured as per project specific (Link)
		EFV2XP_Uu (4F04) configured as per project specific (Link)



‌Use Case – Ensuring Good Quality of Experience

Feature	R/C/AM	Recommended Value	Customer Value (Requirement)
Multi-Device and Multi-Identity	C	UST Service no.134 available		☐
		EFMuDMiDConfigData (6FFE) configured as per project specific (Link)
Call control on PDU Session by USIM	C	UST Service no.128 available		☐
Network Rejection Event	AM	Allows UICC to retrieve the network rejection codes when network issues prevent connection	N/A
Data connection status Change Event for 5GS	AM	Informs UICC that ME has detected a change in 5GS data connection	N/A
Provide Local Information extended to support NG-RAN information	AM	ME provides to UICC information on MNC, MCC, LAC/TAC, cell id, NG-RAN cell id	N/A
Timing advance information	AM	ME provides UICC with NR primary timing advance	N/A
Network measurement report	AM	ME provides UICC with available Network Measurement Report (NMR) related to NR	N/A

‌Use Case – Network Resource Optimization

Feature	R/C/AM	Recommended Value	Customer Value (Requirement)
Unified Access Control	C	UST Service no.126 available		☐
		EFUAC_AIC (4F06) configured as per project specific (Link)
	C	UST Service no.127 available		☐



2.      ‌5G Parameter description



1.         ‌OPL 5G

OPL 5G stored under EFOPL5G (4F08) (see 3GPP TS 31.102). It contains the Tracking Area Identity and PLMN Network Name Record Identifier: <MCC><MNC><TAC><PNN Rec.Id> Example:

Rec.#1: 012345 000000 FFFFFE 01



‌USAT Pairing



UE-based procedure with USAT application pairing defined in 3GPP TS 33.187 Security aspects of Machine - Type Communication. It needs list of allowed IMEI(SV) range of values to be stored in EFIAL (6FF0) (see 3GPP TS 31.102).



IMEI



Length	Description	Status
1 byte	Tag of Range of IMEI values: '80'	M
1 byte	Length	M
X bytes	IMEI range of values that the USIM is authorized to be paired to	C



8 digits

6 digits

1 digit

IMEI 15 digits

The IMEI is composed by Type Allocation Code (TAC), Serial Number (SNR), and Check Digit (CD) / Spare Digit (SD).





IMEISV



Length	Description	Status
1 byte	Tag of Range of IMEISV values: '81'	M
1 byte	Length	M
X bytes	IMEISV range of values that the USIM is authorized to be paired to	C



8 digits

6 digits

2 digits

IMEISV 16 digits

The IMEISV is composed by Type Allocation Code (TAC), Serial Number (SNR), and Software Version Number (SVN).





1.         ‌SUCI Calculation Information



SUCI Calculation Information stored under EF_SUCI_Calc_Info (4F07) (see 3GPP TS 31.102). Or if the UICC should make the SUCI calculations, USIM / DF 5FD0 / 4F01 must contain the SUCI data and UST service 125 be activated.



SUCI_Calc_Info contains the list of Protection Scheme Identifier and the list of Home Network Public Key.

Protection Scheme Identifier List

The Protection Scheme Identifier represents a protection scheme as described in 3GPP TS

33.501 and it is coded in one byte as follows:



Protection Scheme identifier coded as described in 3GPP TS 24.501

RFU, bit = 0





Home Network Public Key List

It contains a list of the Home Network Public Key and the corresponding Home Network Public Key Identifier that shall be used by the ME to calculate the SUCI.

The Home Network Public Key Identifier may have any value in the range from 0 to 255 as described in 3GPP TS 23.003.



The Home Network Public Key is coded in hexadecimal digits as described in IETF RFC 7748 (for Protection Scheme Profile A) and in IETF RFC 5480 (for Protection scheme Profile B). The length of the Home Network Public Key depends on the Protection Scheme and the form of the Home Network Public Key (e.g. compressed or uncompressed).



For example,



‌Code 6 - SUCI data sample 1



A0 04 02010102 \ ; Profile B with key index 1 and profile A with key index 2
A1	4B \ ; HN public key list data object
80	01 0C \ ; HN public key index 1, Id 0C
81	21 02 72DA71976234CE833A6907425867B82E074D44EF907DFB4B3E21C1C2256EBCD1 \ ;
HN	public key value (compressed)
80	01 05 \ ; HN public key index 2, Id 05
81	20 5A8D38864820197C3394B92613B20B91633CBD897119273BF8E4A6F4EEC0A650 \
; HN public key value





A0 04 02010102 \

key index 2 A1 6B \

80 01 0C \

; Profile B with key index 1 and profile A with

; HN public key list data object

; HN public key index 1, Id 0C

81 41 04 72DA71976234CE833A6907425867B82E074D44EF907DFB4B3E21C1C2256EBCD1 \ ;

HN public key value (uncompressed)

5A7DED52FCBB097A4ED250E036C7B9C8C7004C4EEDC4F068CD7BF8D3F900E3B4

\

1.  01 05 \ ; HN public key index 2, Id 05

2.  20 5A8D38864820197C3394B92613B20B91633CBD897119273BF8E4A6F4EEC0A650 \

; HN public key value

‌Code 7 - SUCI data sample 2



‌5.B.2 Default SUCI data on SMAOT500B



The SUCI key can be maximum 64 bytes for Profile B, and is always 32 bytes for Profile

A. SUCI uses assymetric cryptos ( Curve25519 and Secp256r1) not supported in all the old standard 3G/LTE SIM cards in case you want the SUCI calculation to be made on the UICC. You must generate key pairs with the above cryptos, the private key goes to the network and the public key on the cards.



5G files are under USIM in DF 5FC0 and DF 5FD0. USIM / DF 5FD0 / 4F01 (SUCI_CALC_INFO) is only used if service 125 is activated in UST and should contain same data as USIM/5FC0/4F07



Please see information below.



5FC0

4F01; 5GS3GPPLOCI

4F02; 5GSN3GPPLOCI

4F03; 5GS3GPPNSC

4F04; 5GSN3GPPNSC

4F05; 5GAUTHKEYS

4F06; UAC_AIC

4F07; SUCI_Calc_Info

4F08; OPL5G

4F09; NSI

4F0A; Routing_Indicator

5FD0-SAIP

4F01; SUCI_Calc_Info_USIM



Other settings to look at are:

Default Routing Indicator, 4F0A; Routing_Indicator, is F0 FF 00 00, i.e 0, and not used. If you want to set it to for example 17, then 4F0A = 71 FF 00 00



Note:

Protection Scheme (PS) Identifier 01 (profile A): Identifier 01 is always Profile A Protection Scheme (PS) Identifier 02 (profile B): Identifier 02 is always Profile B

‌Code 8 - Default SUCI data on SMAOT500B



‌Explanatory of the SUCI sample data:



A0, A1, 80 and 81 are "tags" often (always) followed by a length (in bytes and in Hex format)

A0 : Protection Scheme Identifier List data object tag

06 : Identifier List length (following 6 bytes)

02 01 01 02 00 00 :



Where 02 01 : Protection Scheme (PS) Identifier 02 (profile B) with Key index 01 (refers to the first Network Public Key entry in the Home Network Public Key List below),

and 01 02: PS Identifier 01 (profile A) with Key Index 02 (second Public key entry), and 00 00 : Identifier 00 with Key Index 00 (null scheme)

A1: Home Network Public Key List data object

6B: Total length from here to end in bytes (6B = 107 bytes)

80: 01 : 1B (Index 01, length of id, Public Key identifier 1 = 1B i.e 27)

81: 41: 04 Tag for key, Length of data (41 = 65 bytes), flag 04 -> uncompressed data The public key of key index 1 (Profile B) and identifier 1B (27 in decimal):

72DA71976234CE833A6907425867B82E074D44EF907DFB4B3E21C1C2256EBCD15A7DED52FCBB097A4ED250E

036C7B9C8C7004C4EEDC4F068CD7BF8D3F900E3B4

80: 01: 1E (Index 02, Public key Identifier 2 = 1E i.e. 30)

81: 20: Length of Public Key (20 = 32 bytes)

The public key of key index 2 (Profile A) and identifier 1E (30 in decimal):

5A8D38864820197C3394B92613B20B91633CBD897119273BF8E4A6F4EEC0A650"

Note for HSS/Core: Home Network Private Key: C53C22208B61860B06C62E5406A7B330C2B577AA5558981510D128247D38BD1D

Profile B ; ID = 27 Profile A ; ID = 30

Reference: ECIES test data from 3GPP TS 33.501

‌5.B.3 Generating SUCI keys with Python

‌Code 9 - Python code to generate SUCI keys





import nacl.public

from cryptography.hazmat.backends import default_backend from cryptography.hazmat.primitives.asymmetric import ec from cryptography.hazmat.primitives import serialization

def generate_suci_keypair(profile): """

Generate a SUCI key pair for a specified profile.



Parameters:

profile (str): 'A' for Curve25519 or 'B' for Secp256r1.



Returns:

tuple: Private key and public key in hex format. """

if profile == 'A': # Curve25519 using pynacl (X25519) private_key = nacl.public.PrivateKey.generate() public_key = private_key.public_key

# Convert keys to bytes private_key_bytes = bytes(private_key) public_key_bytes = bytes(public_key)

elif profile == 'B': # Secp256r1 using cryptography

private_key = ec.generate_private_key(ec.SECP256R1(), default_backend()) public_key = private_key.public_key()



# Get raw private key (32 bytes)

private_key_bytes = private_key.private_numbers().private_value.to_bytes(32, byteorder='big')

# Get raw public key (64 bytes: 32 bytes X + 32 bytes Y) public_numbers = public_key.public_numbers()

public_key_bytes = public_numbers.x.to_bytes(32, byteorder='big') + public_numbers.y.to_bytes(32, byteorder='big')

else:

raise ValueError("Invalid profile. Choose 'A' for Curve25519 or 'B' for Secp256r1.")

# Return private and public keys in hexadecimal format return private_key_bytes.hex(), public_key_bytes.hex()



def main():

# Generate keys for both Profile A and B

print("Generating SUCI keys for Profile A (Curve25519)...") private_key_A, public_key_A = generate_suci_keypair('A') print(f"Profile A - Private Key (Hex): {private_key_A}") print(f"Profile A - Public Key (Hex): {public_key_A}\n")



print("Generating SUCI keys for Profile B (Secp256r1)...") private_key_B, public_key_B = generate_suci_keypair('B') print(f"Profile B - Private Key (Hex): {private_key_B}") print(f"Profile B - Public Key (Hex): {public_key_B}")

if   name  == "  main  ": main()

Sample result



‌5.C.1 TUAK



For TUAK, the OP key must be extended to 32 bytes—twice the size of the Milenage OP key. Consequently, the resulting OPc will also be 32 bytes. These keys are to be stored in designated files.

Additionally, you’ll need to use Python to calculate the correct checksum for the TUAK Ki and OPc keys. The setup also involves configuring a specific file, and after that, during authentication, AMF values are used in determining whether to use Milenage or TUAK, adding complexity to the process.

TUAK configuration parameters are these below stored in 62F1: 00 7D 10 08 10 10 08 01

- AMF: `007D`

·    Subscriber Key (TK) Length: `16 bytes`

·    Message Authentication Code (MAC) Length: `8 bytes`

·    Confidentiality Key (CK) Length: `16 bytes`

·    Integrity Key (IK) Length: `16 bytes`

·    Expected Result (RES) Length: `8 bytes`

·    Keccak Iterations: `1`

Pre-personalised TUAK cards has:

TK: 77777777777777777777777777777777

TOP: 00112233445566778899AABBCCDDEEFF00112233445566778899AABBCCDDEEFF

=TOPC: 8836E0D2BBF4FD01A02ED46FEAEB84143E5E8141E1A2978BC5BC84EF17318876

TK is stored in 62F2

Note: 77777777777777777777777777777777 CRC-CCITT (XModem) Checksum: A033



TOPC is stored in 62F3

Note: 8836E0D2BBF4FD01A02ED46FEAEB84143E5E8141E1A2978BC5BC84EF17318876 CRC-CCITT

(XModem) Checksum: CAEA

‌5.C.1 URSP User Equipment Route Selection Policy‌



User Equipment Route Selection Policy (URSP) is used by the UE to determine how to route outgoing traffic depending on capabilities expected by an application. Pre-configured URSP rules are linked to a PLMN and stored in a BER-TLV format in EFURSP under 5G file system. The coding of the URSP rules is specified in clause 5.2 and URSP rule is encoded as shown in figures 5.2.1 to 5.2.4 and table 5.2.1 of 3GPP TS 24.526.



For example:



Example URSP rules		Comments
Rule Precedence =1	Route Selection	This URSP rule associates the traffic of
Traffic Descriptor:	Descriptor Precedence=1	application "App1" with S-NSSAI-a, SSC
Application	Network Slice Selection:	Mode 3, 3GPP access and
descriptor=App1	S-NSSAI-a SSC Mode Selection: SSC	the "internet" DNN. It enforces the following routing
	Mode 3	policy:
	DNN Selection: internet	The traffic of App1 should be
	Access Type preference:	transferred on a PDU Session supporting
	3GPP access	S-NSSAI-a, SSC Mode 3 and DNN=internet
		over 3GPP access. If this PDU Session is
		not established, the UE shall attempt to
		establish a PDU Session with S-NSSAI-a,
		SSC Mode 3 and the "internet" DNN over
		3GPP access.



The coding would be:



‌Code 10 - URSP sample code







1.                 ‌Glossary



2FF

2nd Generation Form Factor; the so-called plug-in SIM form factor 3FF

3rd Generation Form Factor; the so-called microSIM form factor 3GPP

3rd Generation Partnership Project 4FF

4th Generation Form Factor; the so-called nanoSIM form factor A Interface

Interface between BTS and BSC, traditionally over E1 (3GPP TS 48.008 [3gpp-ts-48- 008])

A3/A8

Algorithm 3 and 8; Authentication and key generation algorithm in GSM and GPRS, typically COMP128v1/v2/v3 or MILENAGE are typically used

A5

Algorithm 5; Air-interface encryption of GSM; currently only A5/0 (no encryption), A5/1 and A5/3 are in use

Abis Interface

Interface between BTS and BSC, traditionally over E1 (3GPP TS 48.058 [3gpp-ts-48- 058] and 3GPP TS 52.021 [3gpp-ts- 52-021])

ACC

Access Control Class; every BTS broadcasts a bit-mask of permitted ACC, and only subscribers with a SIM of matching ACC are permitted to use that BTS

AGCH

Access Grant Channel on Um interface; used to assign a dedicated channel in response to RACH request

AGPL

GNU Affero General Public License, a copyleft-style Free Software License AQPSK

Adaptive QPSK, a modulation scheme used by VAMOS channels on Downlink ARFCN

Absolute Radio Frequency Channel Number; specifies a tuple of uplink and downlink frequencies

AUC

Authentication Center; central database of authentication key material for each subscriber

BCCH

Broadcast Control Channel on Um interface; used to broadcast information about Cell and its neighbors

CBC

Cell Broadcast Centre; central entity of Cell Broadcast service CBCH

Cell Broadcast Channel; used to transmit Cell Broadcast SMS (SMS-CB) CBS

Cell Broadcast Service CBSP

Cell Broadcast Service Protocol (3GPP TS 48.049 [3gpp-ts-48-049]) CC

Call Control; Part of the GSM Layer 3 Protocol CCCH

Common Control Channel on Um interface; consists of RACH (uplink), BCCH, PCH, AGCH (all downlink)

Cell

A cell in a cellular network, served by a BTS CEPT

Conférence européenne des administrations des postes et des télécommunications; European Conference of Postal and Telecommunications Administrations.

CGI

Cell Global Identifier comprised of MCC, MNC, LAC and BSIC CSFB

Circiut-Switched Fall Back; Mechanism for switching from LTE/EUTRAN to UTRAN/GERAN when circuit-switched services such as voice telephony are required.

dB

deci-Bel; relative logarithmic unit dBm

deci-Bel (milliwatt); unit of measurement for signal strength of radio signals DHCP

Dynamic Host Configuration Protocol (IETF RFC 2131 [ietf-rfc2131]) downlink

Direction of messages / signals from the network core towards the mobile phone DSCP

Differentiated Services Code Point (IETF RFC 2474 [ietf-rfc2474]) DSP

Digital Signal Processor dvnixload

Tool to program UBL and the Bootloader on a sysmoBTS EDGE

Enhanced Data rates for GPRS Evolution; Higher-speed improvement of GPRS; introduces 8PSK

EGPRS

Enhanced GPRS; the part of EDGE relating to GPRS services EIR

Equipment Identity Register; core network element that stores and manages IMEI numbers

ESME

External SMS Entity; an external application interfacing with a SMSC over SMPP ETSI

European Telecommunications Standardization Institute FPGA

Field Programmable Gate Array; programmable digital logic hardware Gb

Interface between PCU and SGSN in GPRS/EDGE network; uses NS, BSSGP, LLC GERAN

GPRS/EDGE Radio Access Network GGSN

GPRS Gateway Support Node; gateway between GPRS and external (IP) network GMSK

Gaussian Minimum Shift Keying; modulation used for GSM and GPRS GPL

GNU General Public License, a copyleft-style Free Software License Gp

Gp interface between SGSN and GGSN; uses GTP protocol GPRS

General Packet Radio Service; the packet switched 2G technology GPS

Global Positioning System; provides a highly accurate clock reference besides the global position

GSM

Global System for Mobile Communications. ETSI/3GPP Standard of a 2G digital cellular network

GSMTAP

GSM tap; pseudo standard for encapsulating GSM protocol layers over UDP/IP for analysis

GSUP

Generic Subscriber Update Protocol. Osmocom-specific alternative to TCAP/MAP



GT GTP HLR

Global Title; an address in SCCP

GPRS Tunnel Protocol; used between SGSN and GGSN

Home Location Register; central subscriber database of a GSM network HNB-GW

Home NodeB Gateway. Entity between femtocells (Home NodeB) and CN in 3G/UMTS. HPLMN

Home PLMN; the network that has issued the subscriber SIM and has his record in HLR IE

Information Element IMEI

International Mobile Equipment Identity; unique 14-digit decimal number to globally identify a mobile device, optionally with a 15th checksum digit

IMEISV

IMEI software version; unique 14-digit decimal number to globally identify a mobile device (same as IMEI) plus two software version digits (total digits: 16)

IMSI

International Mobile Subscriber Identity; 15-digit unique identifier for the subscriber/SIM; starts with MCC/MNC of issuing operator

IP IPA

Iu IuCS IuPS LAC

Internet Protocol (IETF RFC 791 [ietf-rfc791])

ip.access GSM over IP protocol; used to multiplex a single TCP connection Interface in 3G/UMTS between RAN and CN

Iu interface for circuit-switched domain. Used in 3G/UMTS between RAN and MSC Iu interface for packet-switched domain. Used in 3G/UMTS between RAN and SGSN Location Area Code; 16bit identifier of Location Area within network

LAPD

Link Access Protocol, D-Channel (ITU-T Q.921 [itu-t-q921]) LAPDm

Link Access Protocol Mobile (3GPP TS 44.006 [3gpp-ts-44-006]) LLC

Logical Link Control; GPRS protocol between MS and SGSN (3GPP TS 44.064 [3gpp-ts- 44-064])

Location Area

Location Area; a geographic area containing multiple BTS LU

Location Updating; can be of type IMSI-Attach or Periodic. Procedure that indicates a subscriber’s physical presence in a given radio cell.

M2PA

MTP2 Peer-to-Peer Adaptation; a SIGTRAN Variant (RFC 4165 [ietf-rfc4165]) M2UA

MTP2 User Adaptation; a SIGTRAN Variant (RFC 3331 [ietf-rfc3331]) M3UA

MTP3 User Adaptation; a SIGTRAN Variant (RFC 4666 [ietf-rfc4666]) MCC

Mobile Country Code; unique identifier of a country, e.g. 262 for Germany MFF

Machine-to-Machine Form Factor; a SIM chip package that is soldered permanently onto M2M device circuit boards.

MGW

Media Gateway MM

Mobility Management; part of the GSM Layer 3 Protocol MNC

Mobile Network Code; identifies network within a country; assigned by national regulator

MNCC

Mobile Network Call Control; Unix domain socket based Interface between MSC and external call control entity like osmo-sip-connector

MNO

Mobile Network Operator; operator with physical radio network under his MCC/MNC



MO MS MSC

Mobile Originated. Direction from Mobile (MS/UE) to Network Mobile Station; a mobile phone / GSM Modem

Mobile Switching Center; network element in the circuit-switched core network MSC pool

A number of redundant MSCs serving the same core network, which a BSC / RNC distributes load across; see also the "MSC Pooling" chapter in OsmoBSC’s user manual [userman-osmobsc] and 3GPP TS 23.236 [3gpp-ts-23-236]

MSISDN

Mobile Subscriber ISDN Number; telephone number of the subscriber MT

Mobile Terminated. Direction from Network to Mobile (MS/UE) MTP

Message Transfer Part; SS7 signaling protocol (ITU-T Q.701 [itu-t-q701]) MVNO

Mobile Virtual Network Operator; Operator without physical radio network NCC

Network Color Code; assigned by national regulator NITB

Network In The Box; combines functionality traditionally provided by BSC, MSC, VLR, HLR, SMSC functions; see OsmoNITB

NRI

Network Resource Indicator, typically 10 bits of a TMSI indicating which MSC of an MSC pool attached the subscriber; see also the "MSC Pooling" chapter in OsmoBSC’s user manual [userman-osmobsc] and 3GPP TS 23.236 [3gpp-ts-23- 236]

NSEI

NS Entity Identifier NVCI

NS Virtual Circuit Identifier NWL

Network Listen; ability of some BTS to receive downlink from other BTSs NS

Network Service; protocol on Gb interface (3GPP TS 48.016 [3gpp-ts-48-016]) OCXO

Oven Controlled Crystal Oscillator; very high precision oscillator, superior to a VCTCXO

OML

Operation & Maintenance Link (ETSI/3GPP TS 52.021 [3gpp-ts-52-021]) OpenBSC

Open Source implementation of GSM network elements, specifically OsmoBSC, OsmoNITB, OsmoSGSN

OpenGGSN

Open Source implementation of a GPRS Packet Control Unit OpenVPN

Open-Source Virtual Private Network; software employed to establish encrypted private networks over untrusted public networks

Osmocom

Open Source MObile COMmunications; collaborative community for implementing communications protocols and sys- tems, including GSM, GPRS, TETRA, DECT, GMR and others

OsmoBSC

Open Source implementation of a GSM Base Station Controller OsmoNITB

Open Source implementation of a GSM Network In The Box, combines functionality traditionally provided by BSC, MSC, VLR, HLR, AUC, SMSC

OsmoSGSN

Open Source implementation of a Serving GPRS Support Node OsmoPCU

Open Source implementation of a GPRS Packet Control Unit OTA PC PCH PCP PCU

Over-The-Air; Capability of operators to remotely reconfigure/reprogram ISM/USIM cards Point Code; an address in MTP

Paging Channel on downlink Um interface; used by network to page an MS Priority Code Point (IEEE 802.1Q [?])

Packet Control Unit; used to manage Layer 2 of the GPRS radio interface PDCH

Packet Data Channel on Um interface; used for GPRS/EDGE signalling + user data PIN

Personal Identification Number; a number by which the user authenticates to a SIM/USIM or other smart card

PLMN

Public Land Mobile Network; specification language for a single GSM network PUK

PIN Unblocking Code; used to unblock a blocked PIN (after too many wrong PIN attempts)

RAC

Routing Area Code; 16bit identifier for a Routing Area within a Location Area RACH

Random Access Channel on uplink Um interface; used by MS to request establishment of a dedicated channel

RAM

Remote Application Management; Ability to remotely manage (install, remove) Java Applications on SIM/USIM Card

RF

Radio Frequency RFM

Remote File Management; Ability to remotely manage (write, read) files on a SIM/USIM card

Roaming

Procedure in which a subscriber of one network is using the radio network of another network, often in different countries; in some countries national roaming exists

Routing Area

Routing Area; GPRS specific sub-division of Location Area RR RSL RTP

Radio Resources; Part of the GSM Layer 3 Protocol Radio Signalling Link (3GPP TS 48.058 [3gpp-ts-48-058])

Real-Time Transport Protocol (IETF RFC 3550 [ietf-rfc3550]); Used to transport audio/video streams over UDP/IP

SACCH

Slow Associate Control Channel on Um interface; bundled to a TCH or SDCCH, used for signalling in parallel to active dedicated channel

SCCP

Signaling Connection Control Part; SS7 signaling protocol (ITU-T Q.711 [itu-t- q711])

SDCCH

Slow Dedicated Control Channel on Um interface; used for signalling and SMS transport in GSM

SDK

Software Development Kit SGs

Interface between MSC (GSM/UMTS) and MME (LTE/EPC) to facilitate CSFB and SMS. SGSN

Serving GPRS Support Node; Core network element for packet-switched services in GSM and UMTS.

SIGTRAN

Signaling Transport over IP (IETF RFC 2719 [ietf-rfc2719]) SIM

Subscriber Identity Module; small chip card storing subscriber identity Site

A site is a location where one or more BTSs are installed, typically three BTSs for three sectors

SMPP

Short Message Peer-to-Peer; TCP based protocol to interface external entities with an SMSC

SMSC

Short Message Service Center; store-and-forward relay for short messages SS7 SS

Signaling System No. 7; Classic digital telephony signaling system

Supplementary Services; query and set various service parameters between subscriber and core network (e.g. USSD, 3rd-party calls, hold/retrieve, advice-of-charge, call deflection)

SSH SSN STP SUA

Secure Shell; IETF RFC 4250 [ietf-rfc4251] to 4254

Sub-System Number; identifies a given SCCP Service such as MSC, HLR Signaling Transfer Point; A Router in SS7 Networks

SCCP User Adaptation; a SIGTRAN Variant (RFC 3868 [ietf-rfc3868]) syslog

System logging service of UNIX-like operating systems System Information

A set of downlink messages on the BCCH and SACCH of the Um interface describing properties of the cell and network

TCH

Traffic Channel; used for circuit-switched user traffic (mostly voice) in GSM TCP

Transmission Control Protocol; (IETF RFC 793 [ietf-rfc793]) TFTP

Trivial File Transfer Protocol; (IETF RFC 1350 [ietf-rfc1350]) TOS TRX TS

Type Of Service; bit-field in IPv4 header, now re-used as DSCP (IETF RFC 791 [ietf- rfc791]) Transceiver; element of a BTS serving a single carrier

Technical Specification u-Boot

Boot loader used in various embedded systems UBI UBL UDP

An MTD wear leveling system to deal with NAND flash in Linux Initial bootloader loaded by the TI Davinci SoC

User Datagram Protocol (IETF RFC 768 [ietf-rfc768]) UICC

Universal Integrated Chip Card; A smart card according to ETSI TR 102 216 [etsi- tr102216]

Um interface

U mobile; Radio interface between MS and BTS uplink

Direction of messages: Signals from the mobile phone towards the network USIM

Universal Subscriber Identity Module; application running on a UICC to provide subscriber identity for UMTS and GSM networks

USSD

Unstructured Supplementary Service Data; textual dialog between subscriber and core network, e.g. *100 ? Your exten- sion is 1234

VAMOS

Voice services over Adaptive Multi-user channels on One Slot; an optional extension for GSM specified in Release 9 of 3GPP GERAN specifications (3GPP TS 48.018 [3gpp- ts-48-018]) allowing two independent UEs to transmit and receive simultaneously on traffic channels

VCTCXO

Voltage Controlled, Temperature Compensated Crystal Oscillator; a precision oscillator, superior to a classic crystal oscil- lator, but inferior to an OCXO VLAN

Virtual LAN in the context of Ethernet (IEEE 802.1Q [ieee-802.1q]) VLR

Visitor Location Register; volatile storage of attached subscribers in the MSC VPLMN

Visited PLMN; the network in which the subscriber is currently registered; may differ from HPLMN when on roaming

VTY

Virtual TeletYpe; a textual command-line interface for configuration and introspection, e.g. the OsmoBSC configuration file as well as its telnet link on port 4242
